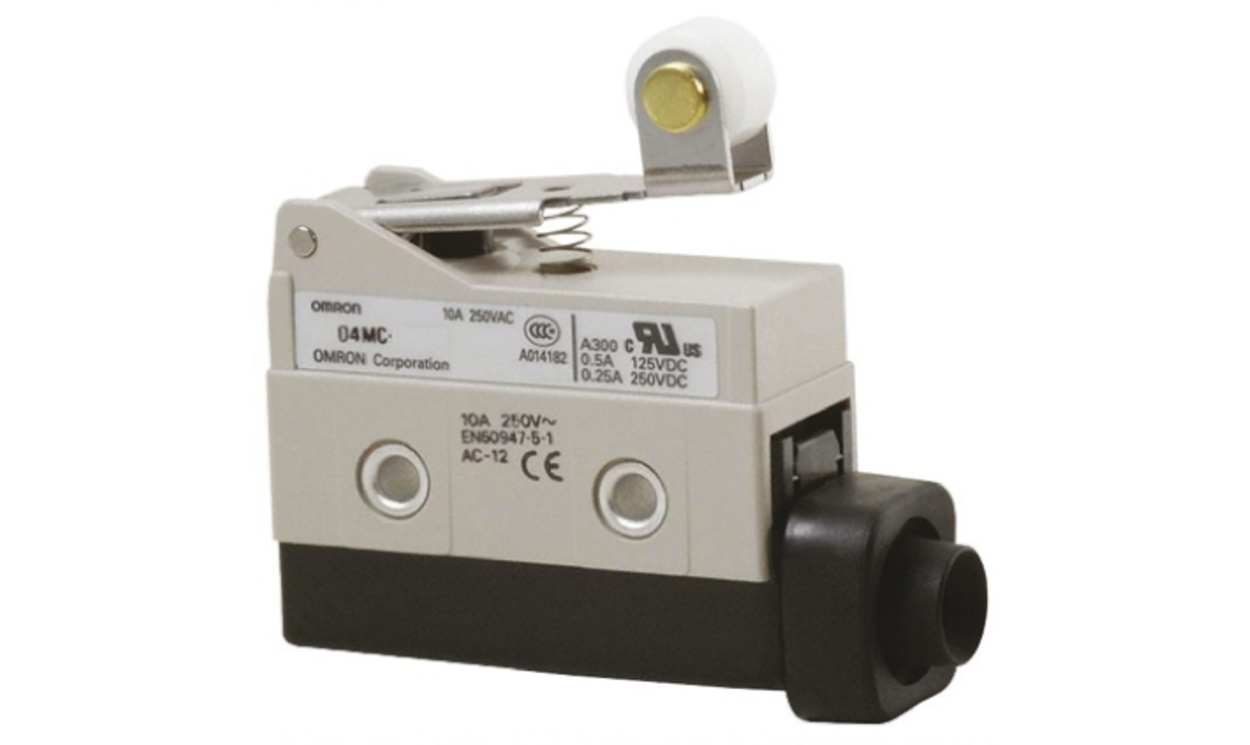

OMRON D4MC-3030 | Roller Lever Limit Switch | SPDT, 10 A, 480 V AC, IP67

Name: OMRON D4MC-3030 | Roller Lever Limit Switch | SPDT, 10 A, 480 V AC, IP67
Brand: OMRON
SKU: D4MC-3030
Availability: OutOfStock

Part Number : D4MC-3030

The OMRON D4MC-3030 is a roller lever limit switch with SPDT snap-action NO/NC contacts rated 10 A, 480 V AC and 250 V DC maximum. It is IP67 and side mounted. Full ratings and dimensions are given in the OMRON datasheet.

Roller lever
10 A; 480 V AC / 250 V DC max
IP67
-10 to +80 °C
10,000,000 cycles
70 x 48.5 x 21.7 mm

Availability: in stock

Detailed Description
Specifications
Downloads

D4MC Enclosed Switch

High Utility Enclosed Switch

Enclosed Switches with Built-in Basic switches for high repeatability and durability of 10 Million operations minimum
Panel mount versions have the same operating position as Z Basic Switch
Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches

Standards

UL, CSA, and CCC

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Maximum AC Voltage	480V
Maximum DC Voltage	250V
Action Type	Snap Action
Length	70mm
Maximum Operating Temperature	+80°C
Width	48.5mm
Depth	21.7mm
Minimum Operating Temperature	-10°C
Mechanical Life	10000000Cycles
Mounting Orientation	Side
