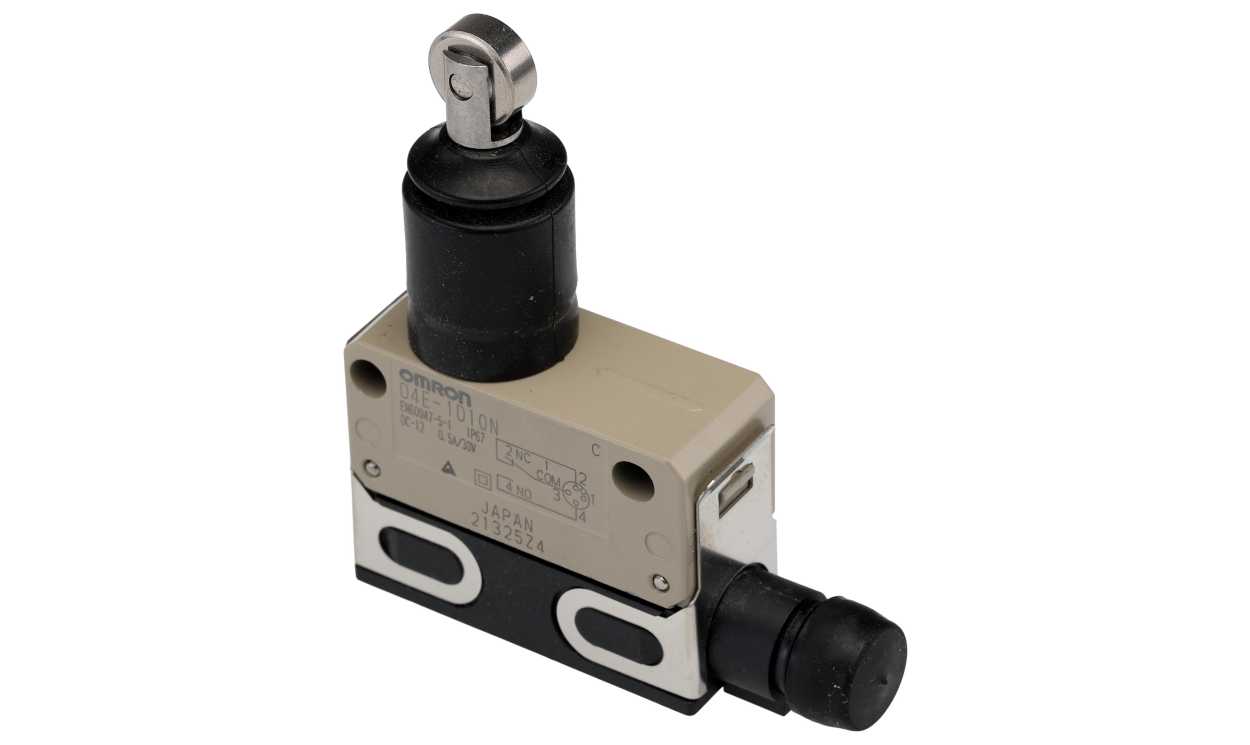

Name: Omron D4E-1D10N, D4E Series Roller Plunger Limit Switch, IP67, SPDT, Zinc Housing, 125V ac ac Max, 1A Max
Brand: OMRON
SKU: D4E-1D10N
Availability: OutOfStock

Omron D4E-1D10N, D4E Series Roller Plunger Limit Switch, IP67, SPDT, Zinc Housing, 125V ac ac Max, 1A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4E-1D10N, D4E Series Roller Plunger Limit Switch, IP67, SPDT, Zinc Housing, 125V ac ac Max, 1A Max

Part Number : D4E-1D10N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4E Series Limit Switch, 5A Maximum Current, Roller Plunger Actuator Type - D4E-1D10N

This limit switch is a miniature enclosed device designed for industrial automation applications, featuring a roller plunger actuator for precise operation. With an IP67 rating, it ensures robust protection against dust and moisture, making it suitable for various environments. The switch can withstand a maximum operating temperature of +80°C while functioning optimally between -10°C and +80°C.

Features & Benefits

• Durable die-cast zinc housing provides anti-corrosive protection
• Long mechanical life of 10 million operations ensures reliability
• Snap action mechanism delivers fast response times
• SPDT configuration permits versatile electrical connections
• Maximum current of 5A supports heavy-duty applications
• Sealing cap design withstands exposure to dust and oil

Applications

• Used in conveyor systems to signal position changes
• Employed in robotics for precise control of movements
• Utilised in safety systems to prevent machinery operation
• Ideal for use in automated assembly lines for quality assurance

What is the significance of the IP67 rating for this device?

The IP67 rating indicates that the device is completely protected against dust ingress and can withstand immersion in water up to 1 metre for 30 minutes, ensuring durability in challenging environments.

How does the snap action mechanism enhance performance?

The snap action mechanism allows for quicker switching, improving the operational efficiency of machinery by providing rapid response and minimising downtime during mechanical operations.

What kind of environments are suitable for the use of this switch?

This switch is suitable for environments where exposure to moisture, dust, and varying temperatures occurs, such as in factories, laboratories, and outdoor industries, due to its robust sealing capabilities.

Can this switch be used with different connection types?

Yes, the limit switch offers various connection options, including screw-terminal and pre-wired types, allowing flexibility in installation across diverse applications within industrial settings.

Brand	Omron
Actuator Type	Roller Plunger
Pole and Throw Configuration	SPDT
IP Rating	IP67
Maximum Current	1A
Housing Material	Zinc
Maximum AC Voltage	125V ac
Series	D4E
Action Type	Snap Action
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-10°C
Standards Met	CSA, UL
Operating Force	11.77 N
Mechanical Life	10000000Cycles
