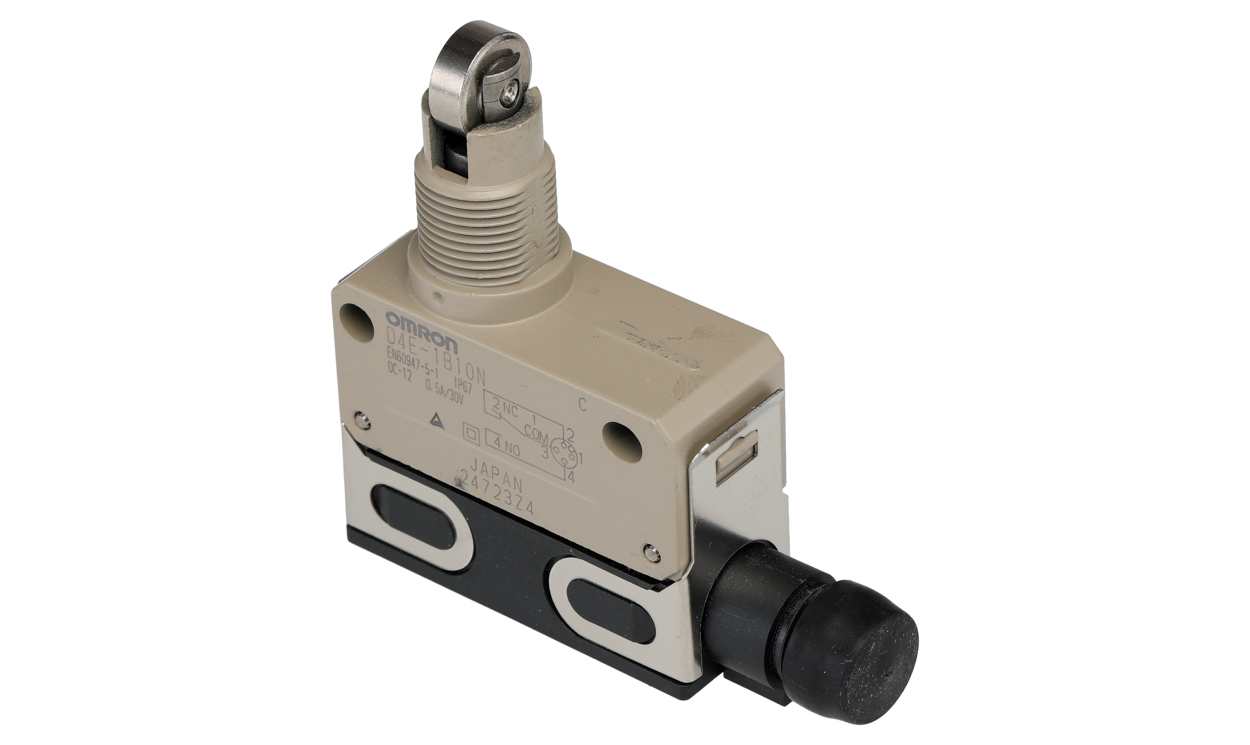

Omron D4E-1B10N, Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Zinc Housing, 125V ac ac Max, 1A Max

Part Number : D4E-1B10N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4E Series Limit Switch, SPDT Pole Configuration, Roller Plunger Actuator Type - D4E-1B10N

This limit switch is designed for reliable performance in various applications, ensuring precise control in automation. Featuring a roller plunger actuator type, it operates with SPDT (Single Pole Double Throw) circuits and provides both normally open (NO) and normally closed (NC) configurations. The product is compact with a robust zinc housing, making it suitable for environments with humidity and dust exposure, maintaining an IP67 rating. Operating efficiently within temperature extremes of -10°C to +80°C, this switch is built for demanding industrial settings.

Features & Benefits

• Highly durable construction ensures longevity with a mechanical life of 10 million operations
• Snap action mechanism allows for quick and reliable switching
• Designed for maximum operating force of 11.77N, providing precise actuation
• Simplified installation is achieved with a one-touch connector to reduce downtime
• Thermally rated for extreme conditions, ensuring performance consistency

Applications

• Used for position detection in conveyor systems
• Implemented in safety interlocks for machinery
• Suitable for circuit control in automated equipment
• Utilised in robotic arms for accurate movement feedback

What are the advantages of using a roller plunger actuator in this switch?

The roller plunger actuator enhances the precision of actuation, enabling smooth operation even under high-frequency switching. This design allows for effective movements in tight spaces while maintaining robustness against wear and tear.

How does the specified IP67 rating impact its performance in outdoor environments?

With an IP67 rating, the switch offers complete protection against dust and can withstand immersion in water up to 1m for 30 minutes, making it ideal for outdoor or harsh indoor environments where exposure to the elements is a concern.

What safety precautions should I consider when installing this switch?

Ensure that the switch is securely mounted with the specified torque to prevent malfunction. A proper fuse should be integrated in series to protect against potential short circuits, and the wiring should be checked for integrity before use.

Brand	Omron
Actuator Type	Roller Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	1A
Housing Material	Zinc
Maximum AC Voltage	125V ac
Action Type	Snap Action
