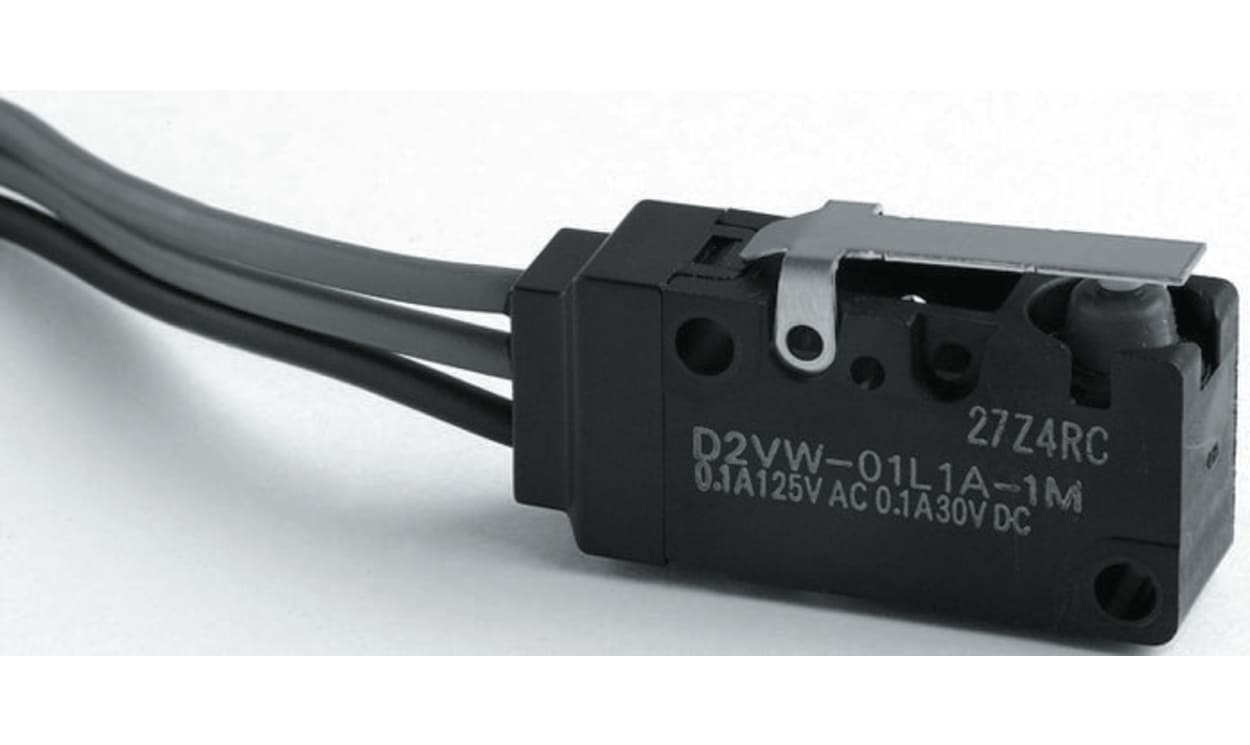

OMRON D2VW-01L1A-1M(CHN) | Short Hinge Lever Micro Switch | Pre-wired Terminal, 100 mA @ 30 V dc, SPDT
Fitted with pre-wired leads, the OMRON D2VW-01L1A-1M(CHN) is a short hinge lever micro switch. Specified with a contact rating of 100 mA at 30 V DC, SPDT contacts and IP67 protection, it needs 1.96 N to operate, works from -40 to +85 °C and has a mechanical life of 10,000,000 operations.
- Contact current rating: 100 mA at 30 V DC
- Contact configuration: SPDT
- Operating force 1.96 N, release force 0.2 N
- Operating temperature: -40 to +85 °C
- Contact material: Gold Alloy
- Mechanical life: 10,000,000 operations
- Detailed Description
- Specifications
Omron Subminiature Sealed (100 mA)
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 100 mA @ 30 Vdc
Contact configuration: SPDT
Approvals
| Brand | Omron |
| Actuator Type | Short Hinge Lever |
| Terminal Type | Pre-wired |
| Contact Configuration | SPDT |
| IP Rating | IP67 |
| Contact Current Rating | 100 mA @ 30 V dc |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Contact Material | Gold Alloy |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -40 → +85 °C (-40 to 185 °F) |
| Operating Force | 1.96 N |
| Release Force | 0.2N |
