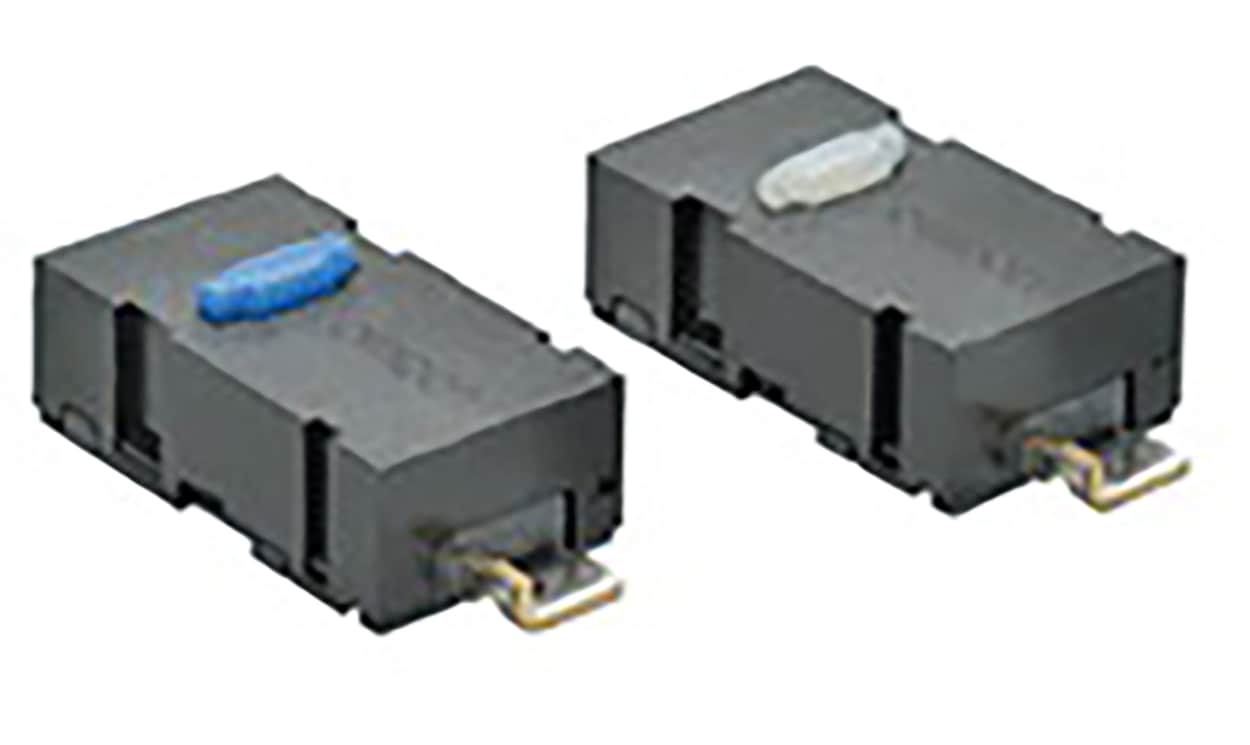

OMRON D2LS-21 | Button Subminiature Micro Switch | Surface Mount Terminal, 1 mA, SPST
OMRON's D2LS-21 pairs surface mount terminals with a button subminiature micro switch design. Specified with a contact rating of 1 mA, SPST contacts and IP40 protection, it needs 0.6 N to operate and works from -25 to +85 °C.
- Contact current rating: 1 mA
- Voltage rating: 6 V DC
- Operating force 0.6 N, release force 0.15 N
- Operating temperature: -25 to +85 °C
- Contact material: Silver
- Housing: D2 Housing
- Detailed Description
- Specifications
- Downloads
Omron Micro Switch
Features and Benefits
• Clear click feeling
• Compact design and solder terminal
• Durability up to 5,000,000 operations
• High-performance
• Low cost
• Operating temperature ranges between -25°C and 85°C
• Snap-on action mechanism
• Surface mount type
• Voltage rating is 6VDC
Applications
• Electronics equipment
• Industry
Certifications
| Brand | Omron |
| Actuator Type | Button |
| Terminal Type | Surface Mount |
| Contact Configuration | SPST |
| IP Rating | IP40 |
| Contact Current Rating | 1 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Contact Material | Silver |
| Operating Temperature Range | -25 → +85 °C (-13 to 185 °F) |
| Operating Force | 0.6 N |
| Release Force | 0.15N |
| Switch Housing | D2 Housing |
| Voltage Rating | 6V dc |
