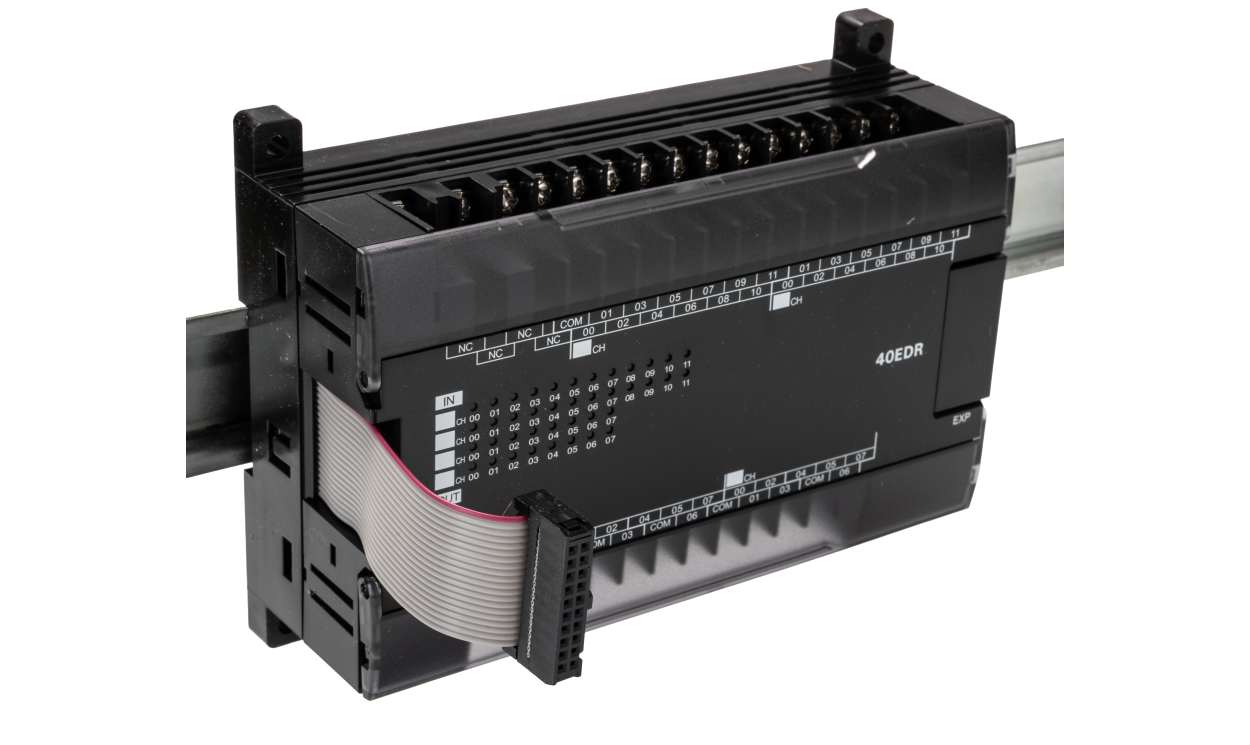

Omron CP1W-40EDR, CP1W Series PLC Expansion Module for Use with PLC Module, Voltage, Relay

Name: Omron CP1W-40EDR, CP1W Series PLC Expansion Module for Use with PLC Module, Voltage, Relay
Brand: OMRON
SKU: CP1W-40EDR
Availability: OutOfStock

Part Number : CP1W-40EDR

I/O expansion unit, 24 x 24 VDC inputs, 16 x relay outputs 2 A

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron CP1W Series PLC Expansion Module, 24 Inputs, 2A Output Current - CP1W-40EDR

This PLC expansion module enhances the functionalities of Omron's PLC systems, facilitating efficient integration of various input and output operations, which is particularly advantageous in industrial automation. It supports both voltage inputs and relay outputs, ensuring adaptability to the demands of modern automation systems.

Features & Benefits

• Supports 24 voltage inputs for comprehensive data acquisition
• Provides 16 relay outputs for effective control of external devices
• Operates within a maximum temperature of +60°C, accommodating high-performance environments
• Compact dimensions allow for easy installation in restricted spaces
• Compatible with existing PLC modules to expand capabilities
• Durable design suited for industrial automation Applications

Applications

• Integration with current PLC systems to enhance functionality
• Control of machinery in automated manufacturing processes
• Monitoring and management of electrical devices

How do I install this module with my existing system?

Installation requires connecting it directly to the PLC base unit using the provided connectors, following the system’s wiring diagram.

What types of devices can I control with the relay outputs?

The relay outputs are capable of managing various electrical devices, including motors, lights, and equipment that necessitates switching capabilities.

Can I use this module in high-temperature environments?

Yes, it functions effectively in conditions with temperatures reaching up to +60°C, making it appropriate for many industrial settings.

Is this module compatible with other brands of PLCs?

It is specifically designed for Omron PLC systems, and compatibility with other brands may differ.

Brand	Omron
Accessory Type	PLC Expansion Module
Series	CP1W
Number of Inputs	24
Input Type	Voltage
Number of Outputs	16
Output Type	Relay
For Use With	PLC Module
Output Current	2 A
Maximum Operating Temperature	+60°C
Dimensions	110 x 150 x 50 mm

I/O expansion unit, 24 x 24 VDC inputs, 16 x relay outputs 2 A
