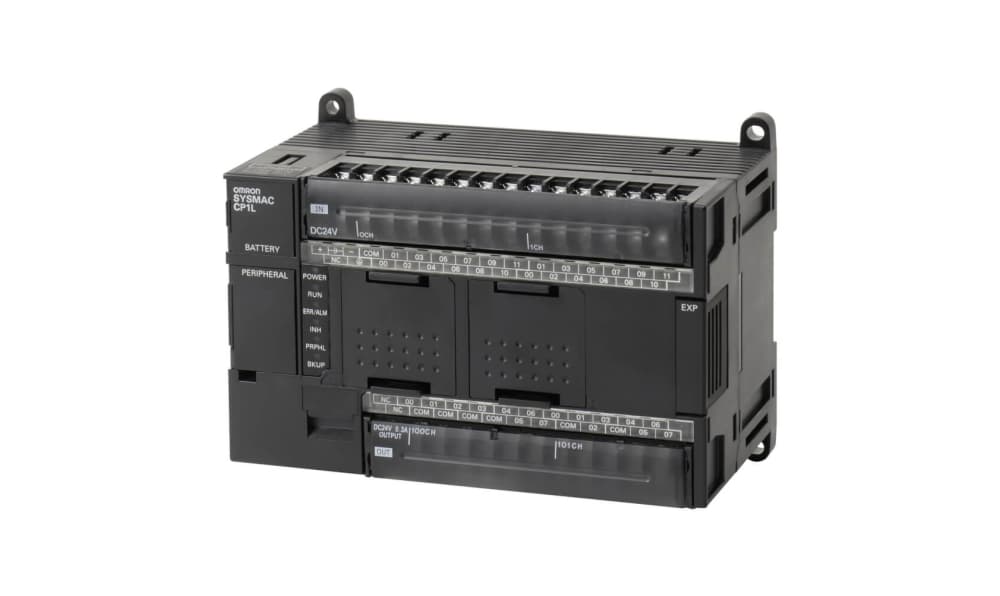

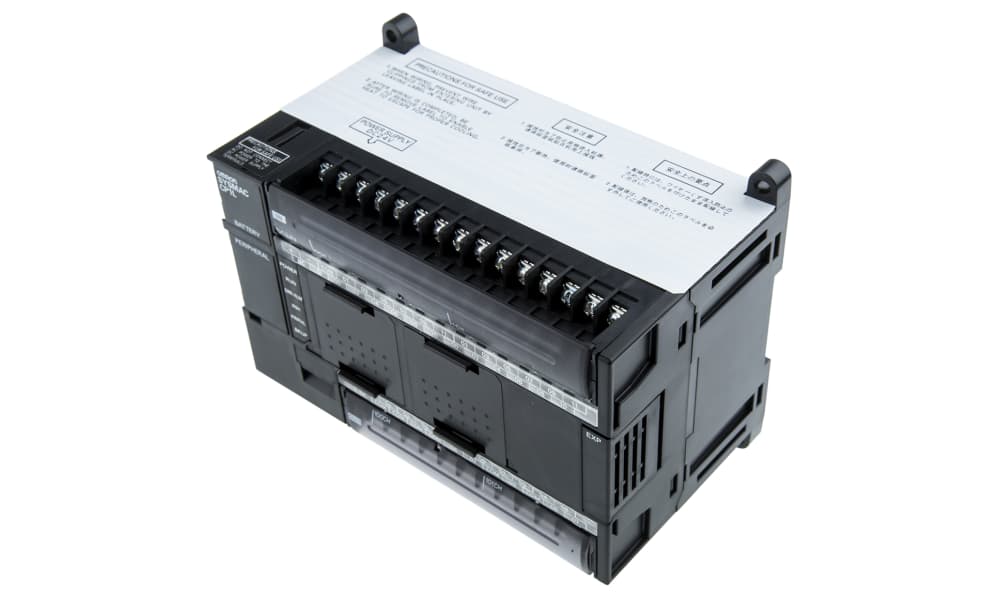

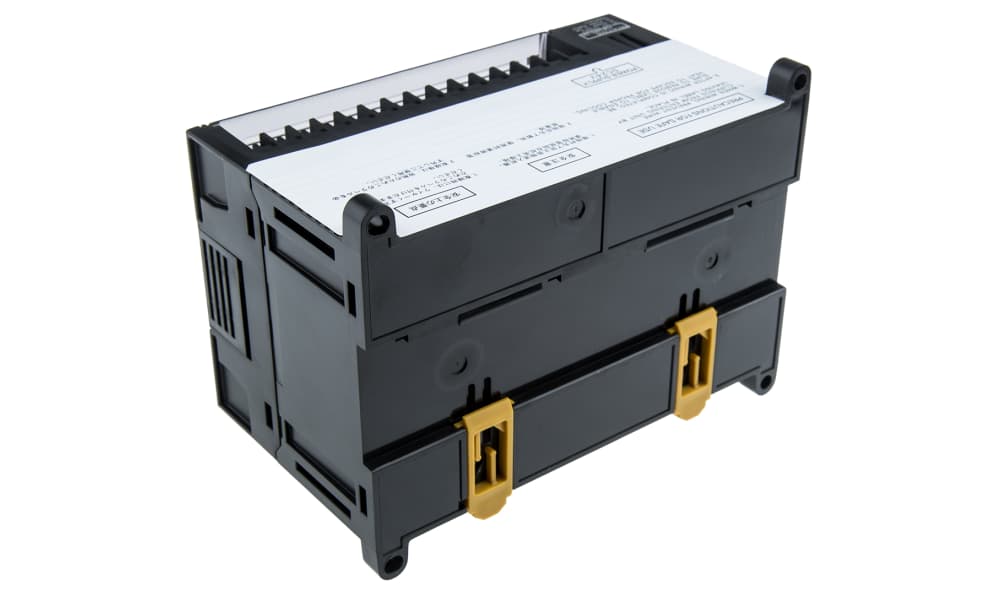

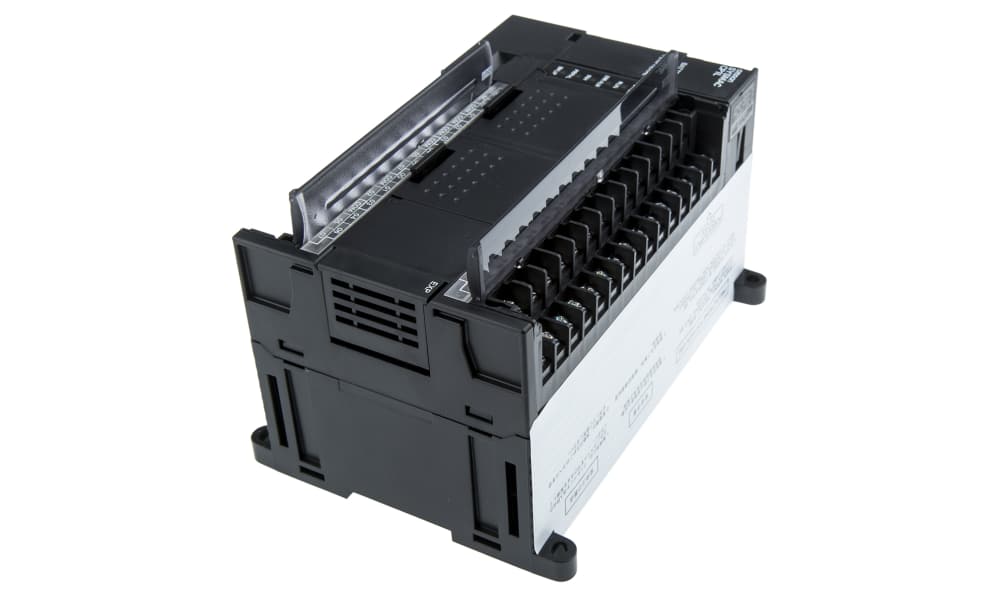

Omron CP1L-M40DT1-D, CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Transistor Output, 24 (DC)-Input, DC Input

Name: Omron CP1L-M40DT1-D, CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Transistor Output, 24 (DC)-Input, DC Input
Brand: OMRON
SKU: CP1L-M40DT1-D
Availability: OutOfStock

Part Number : CP1L-M40DT1-D

Availability: Sold out

Detailed Description
Specifications

Omron CP1L Series PLC CPU, 24 DC Inputs, 16 Transistor Outputs - CP1L-M40DT1-D

This PLC CPU is a versatile automation controller designed for effective industrial applications. Measuring 90 x 150 x 85 mm, it features a robust construction suitable for DIN rail mounting. With an impressive capacity for 10,000 programming steps and support for both digital inputs and outputs, this controller is ideal for complex control tasks in various environments.

Features & Benefits

• Supports 24 DC inputs and 16 transistor outputs
• Delivers reliable PNP output for safe signalling
• USB communication for easy programming and connectivity
• Programme with Ladder Logic for intuitive control design
• Battery backup ensures operational continuity during power failures

Applications

• Used with SYSMAC CP1L series for integrated solutions
• Ideal for industrial automation processes requiring precise control
• Suitable for systems needing a DC input PLC controller
• Used in digital inputs and outputs for advanced operations

What kind of programming interface does it use?

The programming interface connects to a computer, allowing for efficient setup and modifications of control programmes.

How does the memory capacity affect performance?

The controller offers 10,000 steps for programme memory and 32,000 words for data memory, allowing complex sequences and data handling without performance issues.

What is the significance of the battery backup feature?

The battery backup maintains functionality during power outages, ensuring uninterrupted control and protecting against data loss.

What are the limitations regarding the operating temperature?

It operates optimally within a temperature range of 0°C to +55°C, making it suitable for varying industrial environments without overheating risks.

Standards

UC1, N, L, CE

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Brand	Omron
Manufacturer Series	CP1L
Number of Inputs	24 (DC)
Output Type	Transistor
For Use With	SYSMAC CP1L Series
Input Type	DC
Voltage Category	20.4 → 26.4 V dc
Number of Outputs	16 (Transistor)
Network Type	USB
Minimum Operating Temperature	0°C
Dimensions	150 x 110 x 85 mm
Memory	10000 (Program Memory) Steps, 32000 (Data Memory) Words
Programming Interface	Computer
Battery Backup	Yes
Width	110mm
Communication Port Type	USB 1.1
Output Current	3.6 (Per Unit) A, 300 (Per Point) mA, 900 (Per Common) mA
Number of Communication Ports	1
Mounting Type	DIN Rail
Programming Language Used	Ladder Logic
