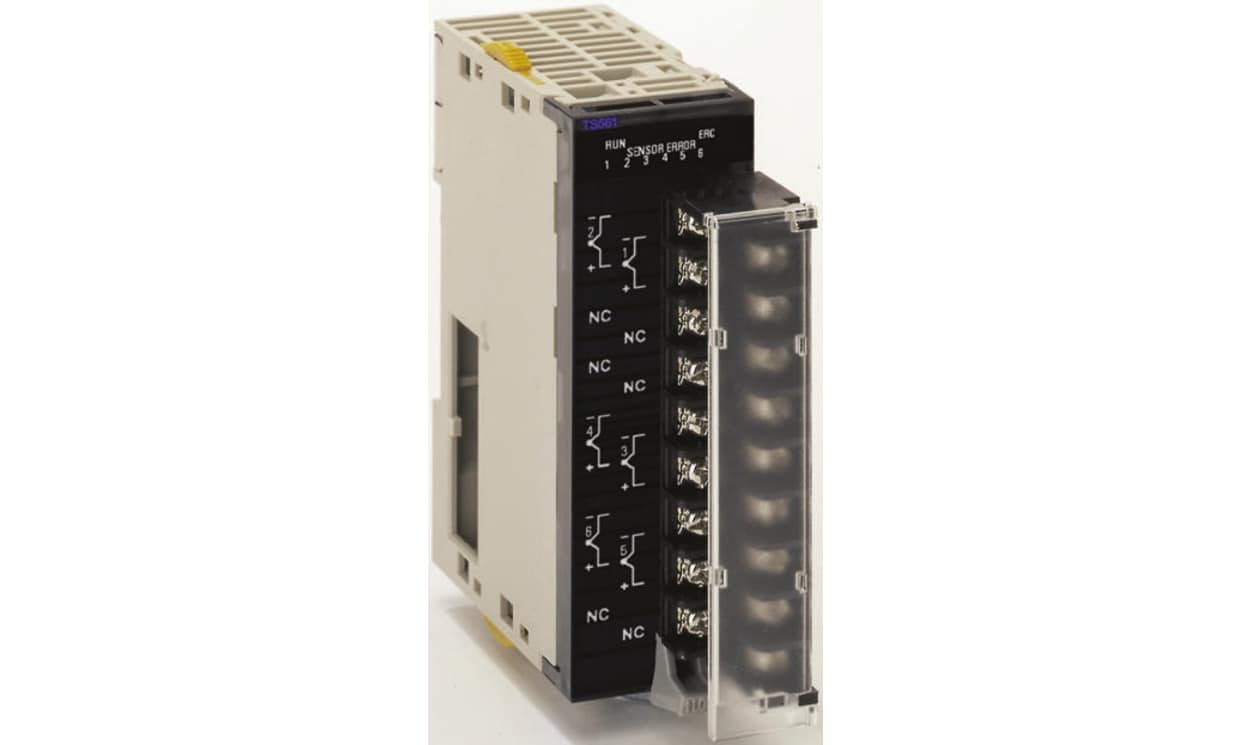

OMRON CJ1W-TC101 | Thermocouple Expansion Module | 4 Inputs, 4 NPN Outputs

Name: OMRON CJ1W-TC101 | Thermocouple Expansion Module | 4 Inputs, 4 NPN Outputs
Brand: OMRON
SKU: CJ1W-TC101
Availability: OutOfStock

Part Number : CJ1W-TC101

OMRON CJ1W-TC101 is a PLC expansion module for CJ Series with four thermocouple inputs and four NPN outputs.

Inputs: 4, thermocouple
Outputs: 4, NPN
For use with: CJ Series

Availability: in stock

Detailed Description
Specifications

Temperature Sensor Modules

These temperature sensor units are classified as digital I/O units when considering I/O allocations, and will take digital I/O points from the total allocation for a CJ1M CPU. The number of I/O points is DIP switch selectable as follows: Configured for 1 to 3 inputs takes 48 digital I/O points, configured for 4 inputs takes 64 digital I/O points, and configured for 5 to 6 inputs takes 96 digital I/O points.

Omron CJ1M Digital and Analogue I/O Modules

CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.

Dimensions: Height 90mm, Width 31mm, Depth 89mm
All modules have removable screw terminal blocks for I/O connections, except screwless (SL)

Brand	Omron
Accessory Type	PLC Expansion Module
Input Type	Thermocouple
Number of Inputs	4
Output Type	NPN
Number of Outputs	4
For Use With	CJ Series
