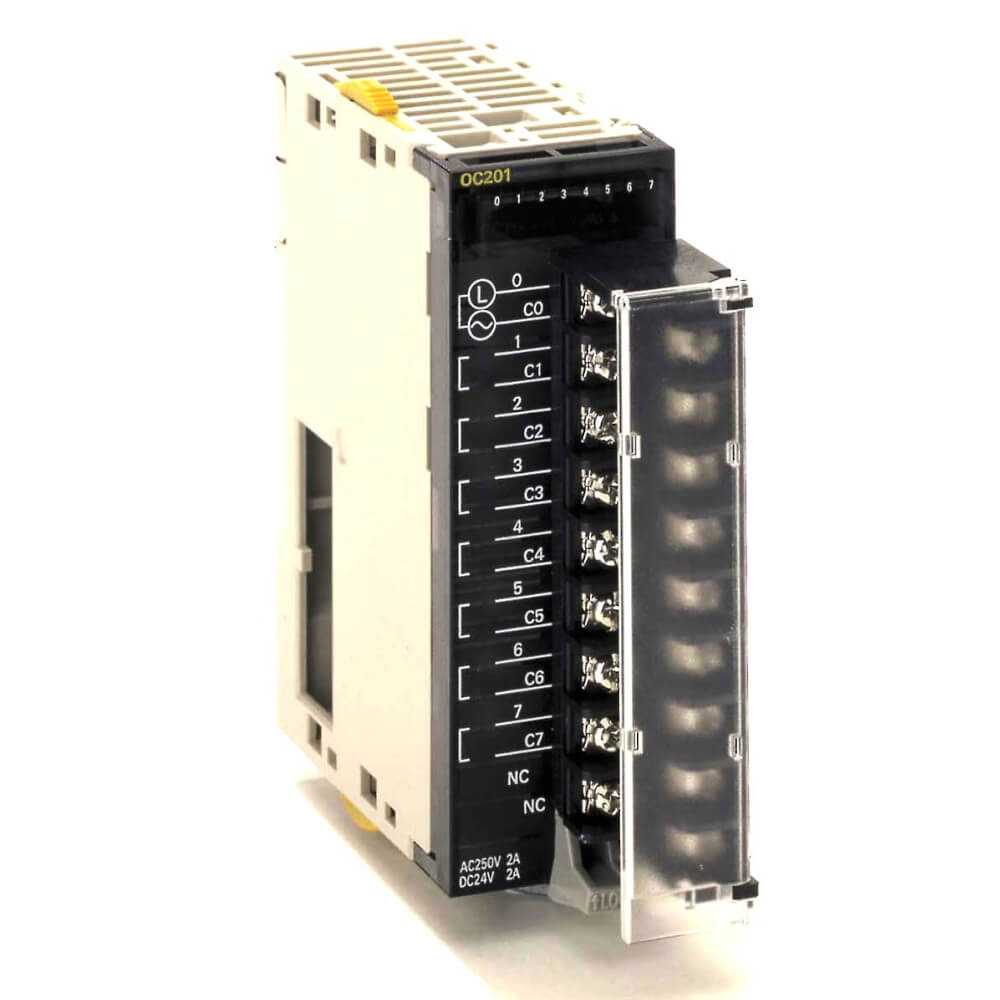

Omron CJ1W-OC201, SYSMAC CJ Series Series PLC I/O Module for Use with SYSMAC CJ Series, Digital, Relay

Name: Omron CJ1W-OC201, SYSMAC CJ Series Series PLC I/O Module for Use with SYSMAC CJ Series, Digital, Relay
Brand: OMRON
SKU: CJ1W-OC201
Availability: OutOfStock

Part Number : CJ1W-OC201

Digital output unit, 8 x relay outputs, 250 VAC/24 VDC, 2 A max, independent commons, screw terminal

Availability: Sold out

Detailed Description
Specifications
Features

Omron SYSMAC CJ Series PLC I/O Module, 8 Outputs, 2A Output Current - CJ1W-OC201

This PLC I/O module is a key element in industrial automation systems, offering seamless integration within the SYSMAC CJ Series. Its eight-channel digital relay output functionality makes it a versatile option for various automation tasks, ensuring users experience consistent performance and enhanced control. The module's compact design allows for straightforward installation in a range of environments, making it a valuable addition to any automation setup.

Features & Benefits

• Digital output module sustaining a current of 2A
• 8-channel configuration provides extensive control options
• Screw termination ensures secure and easy connections
• Compact design for easy installation in limited spaces

Applications

• Used with the SYSMAC CJ Series for control systems
• Suitable for requiring multiple digital outputs
• Effective for automation in manufacturing and assembly lines

What types of connections can be used with the module?

It supports screw termination, providing secure connections for dependable performance.

How many outputs does this module provide?

The module is equipped with eight outputs, enabling simultaneous control of multiple devices.

Is this module suitable for high-current applications?

It can manage a maximum output current of A per channel, suitable for moderate load applications.

Omron CJ1M Digital and Analogue I/O Modules

CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.

Dimensions: Height 90mm, Width 31mm, Depth 89mm
All modules have removable screw terminal blocks for I/O connections, except screwless (SL)

Brand	Omron
Accessory Type	PLC I/O Module
Series	SYSMAC CJ Series
Output Type	Digital, Relay
Number of Outputs	8
For Use With	SYSMAC CJ Series
Output Current	2 A
Termination	Screw
Dimensions	89 x 31 x 95.4 mm

Digital output unit, 8 x relay outputs, 250 VAC/24 VDC, 2 A max, independent commons, screw terminal
