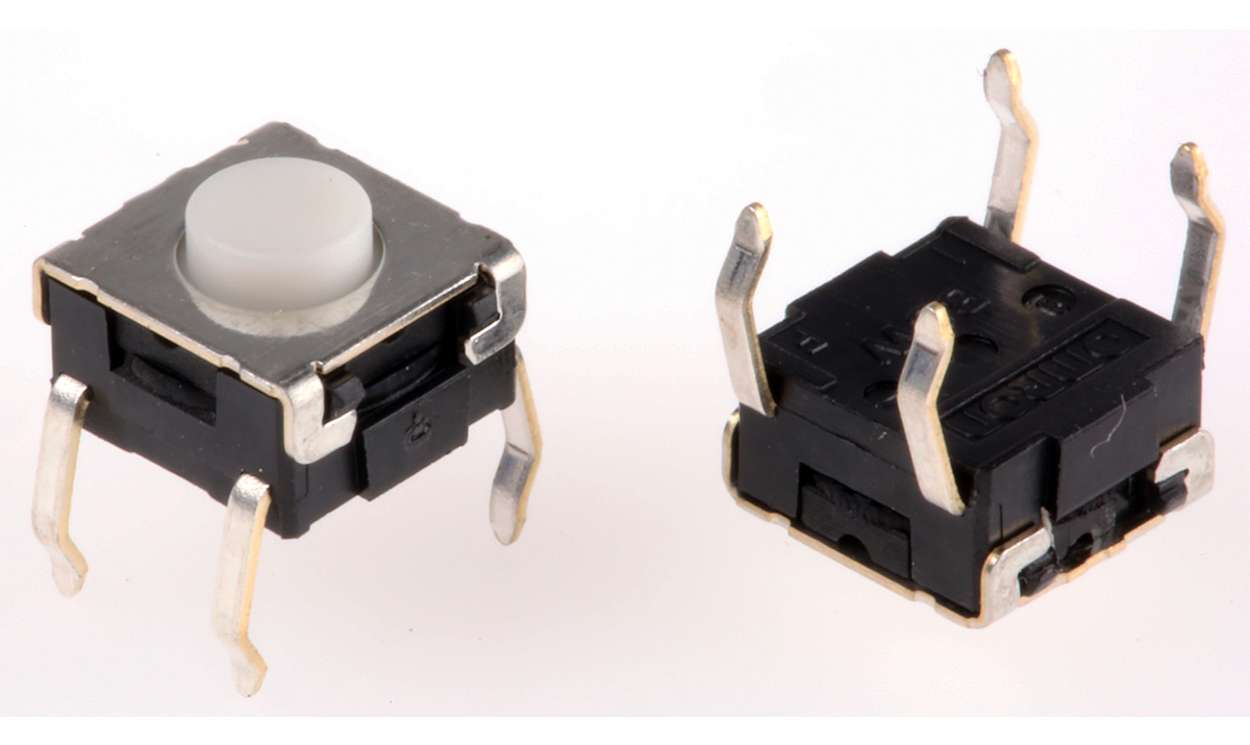

OMRON B3W1000 | Plunger Tactile Switch | 6.6 x 6 mm, 1.57 N, Through Hole

Name: OMRON B3W1000 | Plunger Tactile Switch | 6.6 x 6 mm, 1.57 N, Through Hole
Brand: OMRON
SKU: B3W1000
Availability: OutOfStock

Part Number : B3W1000

OMRON's B3W1000 plunger tactile switch is rated 50 mA at 24 V DC and has a 0.9 mm actuator. Listed figures for the B3W1000 cover a mechanical life of 1,000,000 operations and an operating temperature range of -25 to +70 °C.

Operating force: 1.57 N
Dimensions: 6.6 x 6 x 4.3 mm
Mounting: through hole
Contact configuration: SPST

Availability: in stock

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3W 1000 series (6 mm Sealed Type)

Internal sealed construction allows immersion cleaning with alcohol solvents after soldering
Snap-action contact construction for a positive click action

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Length	0.9mm
Actuator Type	Plunger
Length	6.6mm
Width	6mm
Dimensions	6.6 x 6 x 4.30mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Operating Force	1.57 N
Height	4.3mm
Minimum Operating Temperature	-25°C
Operating Temperature Range	-25 → +70°C
Maximum Operating Temperature	+70°C
Mechanical Life	1000000Operations
