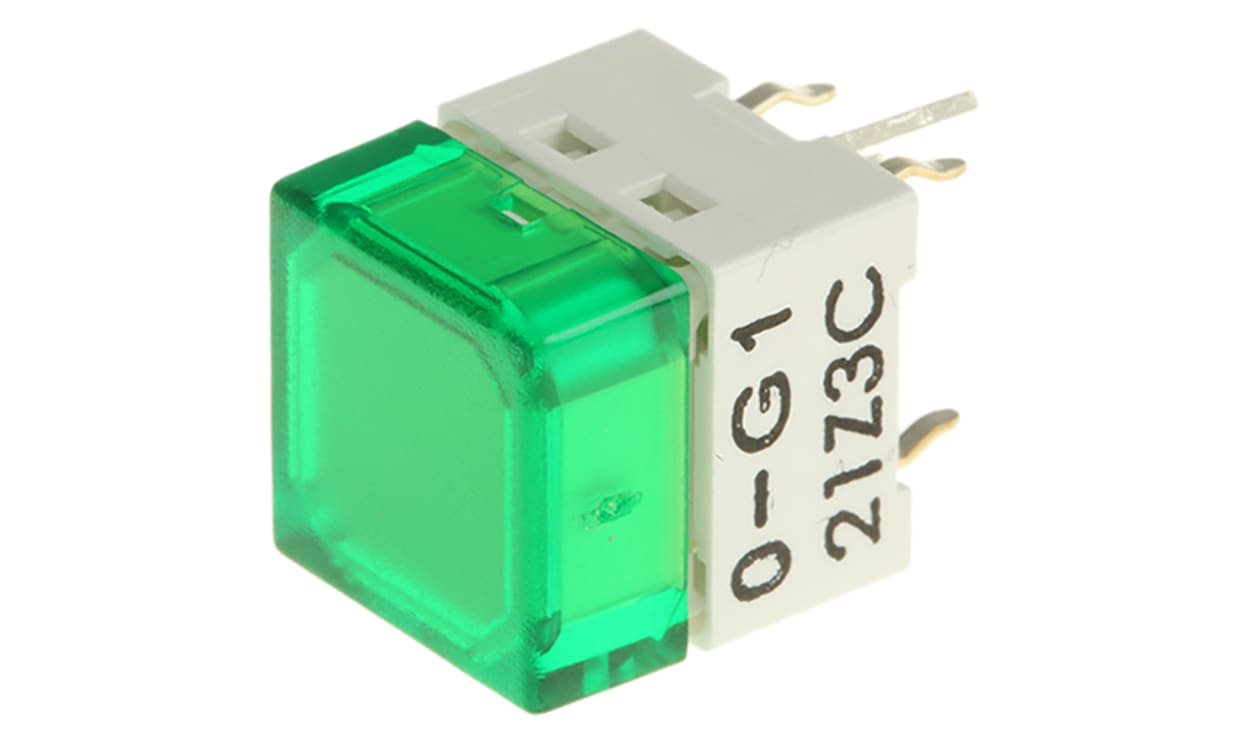

Omron B3W-9000-G1G, IP00 Green Cap Tactile Switch, SPST 50 mA @ 24 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron B3W-9000-G1G, IP00 Green Cap Tactile Switch, SPST 50 mA @ 24 V dc

Name: Omron B3W-9000-G1G, IP00 Green Cap Tactile Switch, SPST 50 mA @ 24 V dc
Brand: General Tech Services LLC
SKU: B3W-9000-G1G
Availability: OutOfStock

Part Number : B3W-9000-G1G

Availability: Sold out

Detailed Description
Specifications

Illuminated Tactile Switches (B3W-9)

Compact construction (10x10x11mm height)
Bright and uniform colour via uniquely constructed diffusion panel
Sealed switch part provides high contact reliability against dust
Available with single or twin blue, green, red or yellow LED's fitted with a variety of cap colours
Momentary, SPST-NO, switching capacity 1 to 50mA, 5 to 24Vdc
Operating force 1.57N
Recommended LED forward current for red, green and yellow (20mA) and for bright green and blue (10mA)
Operating temperature range of -25 to 70°C @ 60 percent maximum humidity (with no icing or condensation)

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Switch Operation	Momentary
Actuator Colour	Green
Actuator Type	Cap
Width	10mm
Dimensions	10 x 10mm
Illuminated	Yes
Contact Current Rating	50 mA @ 24 V dc
IP Rating	IP00
Voltage Rating	24V dc
Height	16.5mm
Operating Force	1.57 N
Contact Material	Silver Plated
Maximum Operating Temperature	+70°C
Mechanical Life	1000000Operations
Operating Temperature Range	-25 → +70°C
Minimum Operating Temperature	-25°C

Omron B3W-9000-G1G, IP00 Green Cap Tactile Switch, SPST 50 mA @ 24 V dc

Omron B3W-9000-G1G, IP00 Green Cap Tactile Switch, SPST 50 mA @ 24 V dc

Illuminated Tactile Switches (B3W-9)
