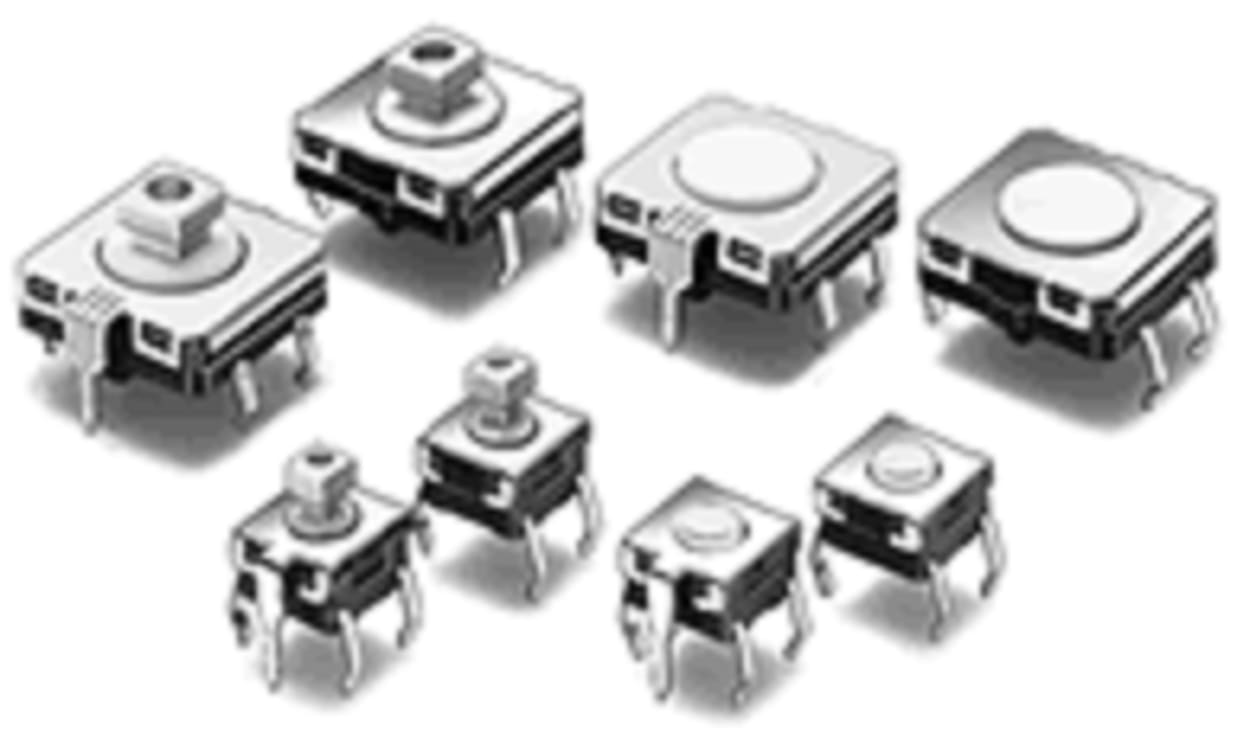

OMRON B3W-4155 | Plunger-for-Cap Tactile Switch | IP40, Through Hole

Name: OMRON B3W-4155 | Plunger-for-Cap Tactile Switch | IP40, Through Hole
Brand: OMRON
SKU: B3W-4155
Availability: OutOfStock

Part Number : B3W-4155

OMRON's B3W-4155 plunger-for-cap tactile switch is rated 50 mA at 24 V DC, with IP40 protection.

Contact configuration: SPST
Switch operation: (On)-Off
Terminal type: PC pin
Mounting: through hole

Availability: in stock

Detailed Description
Specifications

The Omron sealed tactile switch is through-hole-mounting switches that are mounting-compatible wIth B3F series. Sealed structure for high reliabilIty. Sealed construction conforming to ip67 (iec- 60529) provides high reliabilIty in locations exposed to du

Rating (resistive load) 1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value) 10 μA at 1 VDC (resistive load)
Ambient operating temperature -25°C to +70°C at 60%RH maximum (with no icing or condensation)
Ambient operating humidity 35% to 85% (at +5 to +35°C)
Contact form SPST-NO
Insulation resistance 100 MΩ minimum (at 250 VDC with insulation tester)
Dielectric strength 500 VAC, 50/60 Hz for 1 min
Vibration resistance malfunction 10 to 55 Hz, 1.5 mm double amplitude

Brand	Omron
Contact Configuration	SPST
Terminal Type	Pc Pin
Switch Operation	(On)-Off
Actuator Type	Plunger for Cap
Mounting Type	Through Hole
Contact Current Rating	0.05A @24V dc VA
IP Rating	IP40
