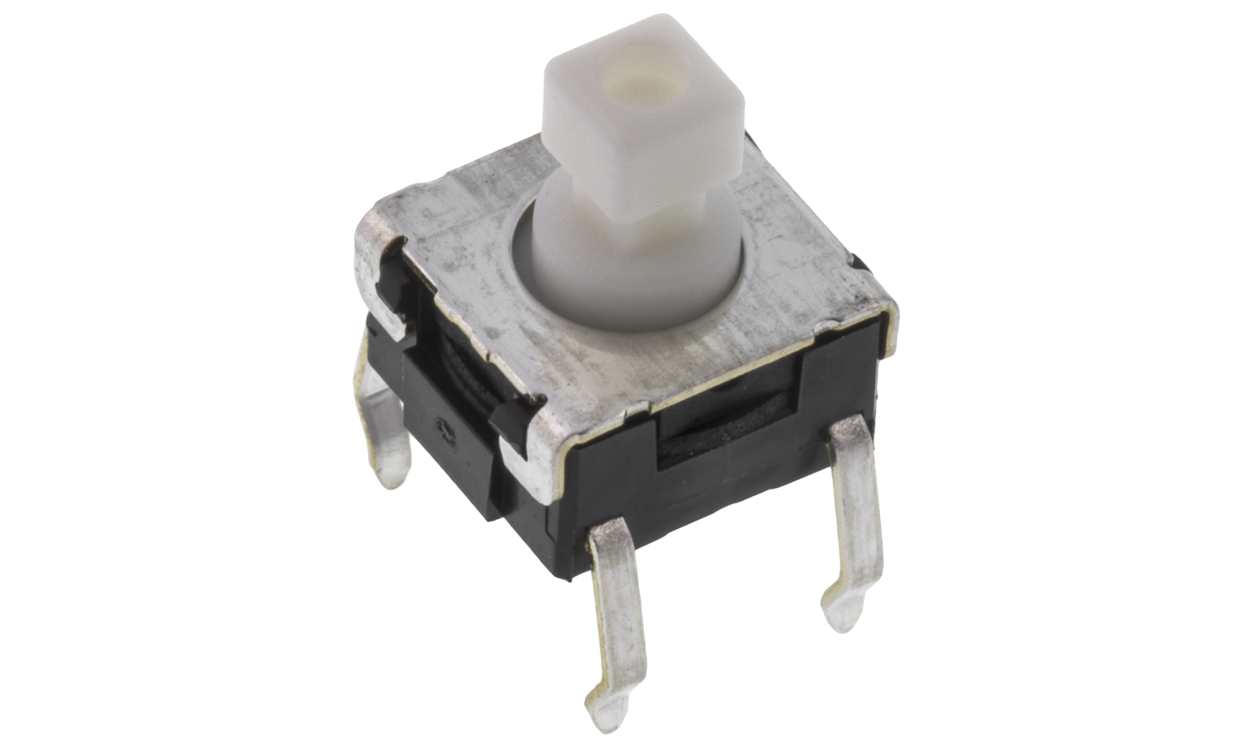

Omron B3W-1050, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3.9mm Through Hole

Name: Omron B3W-1050, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3.9mm Through Hole
Brand: OMRON
SKU: B3W-1050
Availability: OutOfStock

Part Number : B3W-1050

Availability: Sold out

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3W 1000 series (6 mm Sealed Type)

Internal sealed construction allows immersion cleaning with alcohol solvents after soldering
Snap-action contact construction for a positive click action

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Length	3.9mm
Actuator Type	Plunger
Length	6.5mm
Width	6mm
Dimensions	6.5 x 6 x 7.3mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Operating Force	1.57 N
Height	7.3mm
Maximum Operating Temperature	+70°C
Operating Temperature Range	-25 → +70°C
Minimum Operating Temperature	-25°C
Mechanical Life	1000000Operations

Omron B3W-1050, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3.9mm Through Hole

DOWNLOAD CATALOG

Omron B3W-1050, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3.9mm Through Hole

Tactile Switches Omron B3W 1000 series (6 mm Sealed Type)
