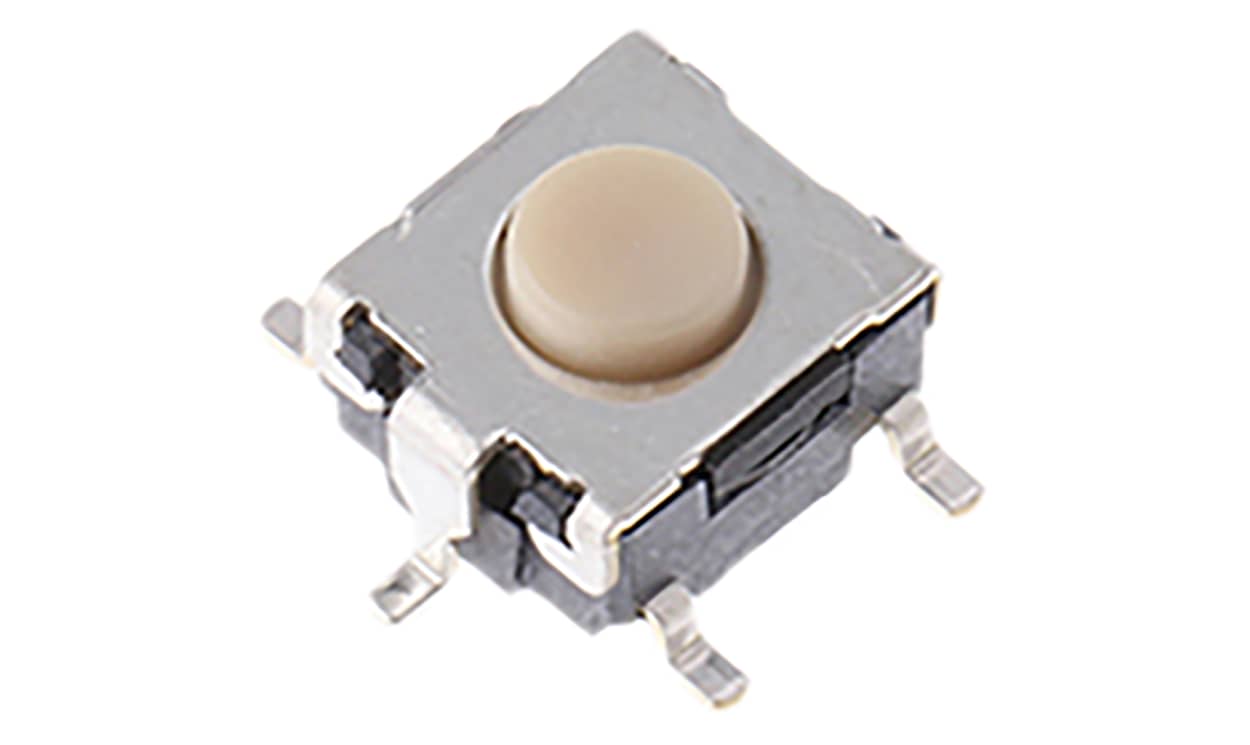

OMRON B3S-1100 | Button Tactile Switch | 6.6 x 6 mm, 1.57 N
Part Number : B3S-1100
The OMRON B3S-1100 is an SPST button tactile switch with a 1.57 N operating force, rated 50 mA at 24 V DC. The B3S-1100 offers a mechanical life of 500,000 operations and an operating temperature range of -25 to +70 °C.
- Dimensions: 6.6 x 6 x 4.3 mm
- Contact configuration: SPST
- Actuator length: 0.8 mm
For pricing, please contact our experts.
Surface Mount Tactile Switch
All switches have a contact configuration of SPST N/O
Sealed construction
Tactile feedback
Dielectric strength: >500Vac/1 min
Insulation resistance: >100MΩ (250Vdc)
Sealed for immersion washing after soldering
Suitable for reflow soldering
Reflow temperature: 235°C, 10 secs max
Tactile feedback
Dielectric strength: >500Vac/1 min
Insulation resistance: >100MΩ (250Vdc)
Sealed for immersion washing after soldering
Suitable for reflow soldering
Reflow temperature: 235°C, 10 secs max
Note
Do not use chlorinated or aqueous solvents for cleaning
