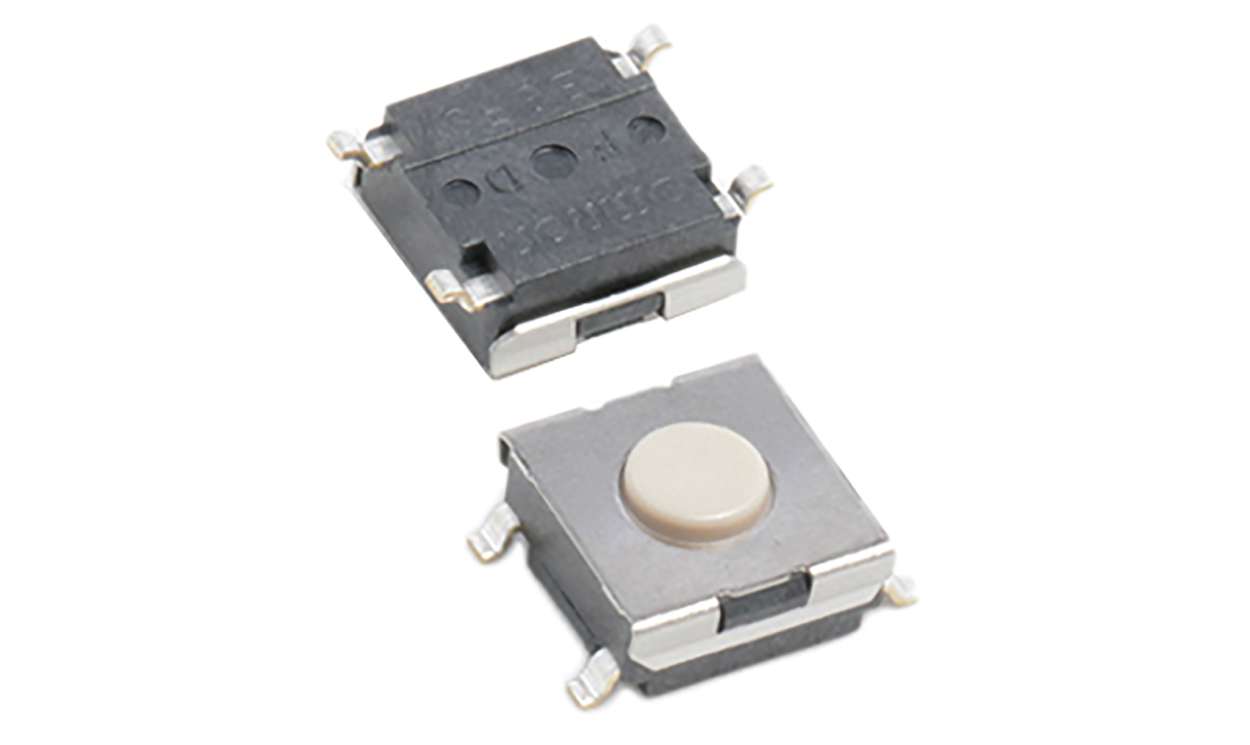

OMRON B3FS-1002P | Plunger Tactile Switch | 6.3 x 6 mm, 1.47 N

Name: OMRON B3FS-1002P | Plunger Tactile Switch | 6.3 x 6 mm, 1.47 N
Brand: OMRON
SKU: B3FS-1002P
Availability: OutOfStock

Part Number : B3FS-1002P

The OMRON B3FS-1002P is an SPST plunger tactile switch with a 1.47 N operating force, rated 50 mA at 24 V DC. The B3FS-1002P offers a mechanical life of 300,000 operations, an operating temperature range of -25 to +70 °C and silver plated contacts.

Dimensions: 6.3 x 6 x 3.1 mm
Contact configuration: SPST
Actuator length: 0.5 mm

Availability: in stock

Detailed Description
Specifications

Tactile Switches Omron B3FS

Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators

Positive click action plus a long life equal to that of a no-contact switch.

Note

Manufacturers part numbers with the P suffix are supplied on tape reel or strip and part numbers without the P suffix are bag quantity

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Surface Mount
Actuator Length	0.5mm
Actuator Type	Plunger
Length	6.3mm
Width	6mm
Dimensions	6.3 x 6 x 3.10mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Height	3.1mm
Operating Force	1.47 N
Contact Material	Silver Plated
Operating Temperature Range	-25 → +70°C
Mechanical Life	300000Operations
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
