OMRON B3F-4100 | Plunger Tactile Switch | 12 x 12 mm, 1.27 N, Through Hole

Name: OMRON B3F-4100 | Plunger Tactile Switch | 12 x 12 mm, 1.27 N, Through Hole
Brand: OMRON
SKU: B3F-4100
Availability: OutOfStock

Part Number : B3F-4100

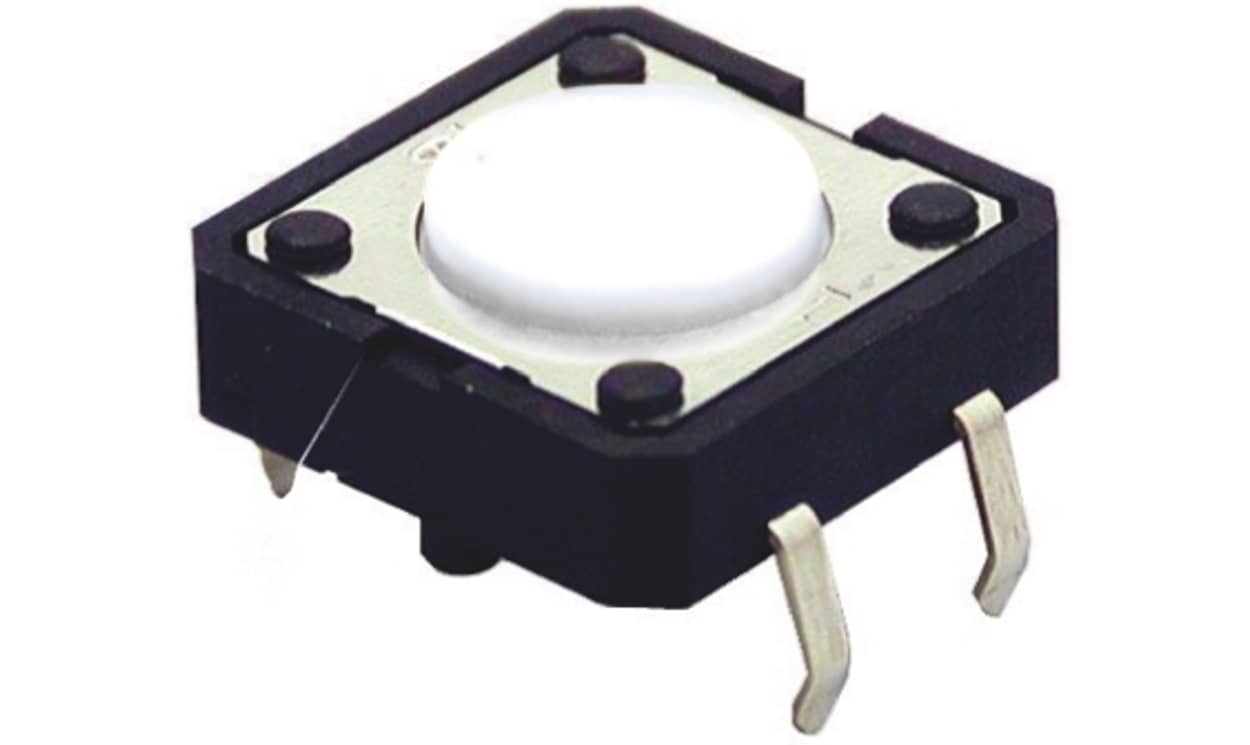

OMRON's B3F-4100 ivory plunger tactile switch is rated 50 mA at 24 V DC. Listed figures for the B3F-4100 cover a mechanical life of 3,000,000 operations and an operating temperature range of -25 to +70 °C.

Operating force: 1.27 N
Dimensions: 12 x 12 x 4.3 mm
Contact material: gold plated
Mounting: through hole
Contact configuration: SPST

Availability: in stock

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3F4000 series (12 x 12 mm)

Models available with flat and projected actuators.

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Colour	Ivory
Actuator Type	Plunger
Length	12mm
Width	12mm
Dimensions	12 x 12 x 4.3mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Operating Force	1.27 N
Height	4.3mm
Minimum Operating Temperature	-25°C
Mechanical Life	3000000Operations
Operating Temperature Range	-25 → +70°C
Maximum Operating Temperature	+70°C
Contact Material	Gold Plated
