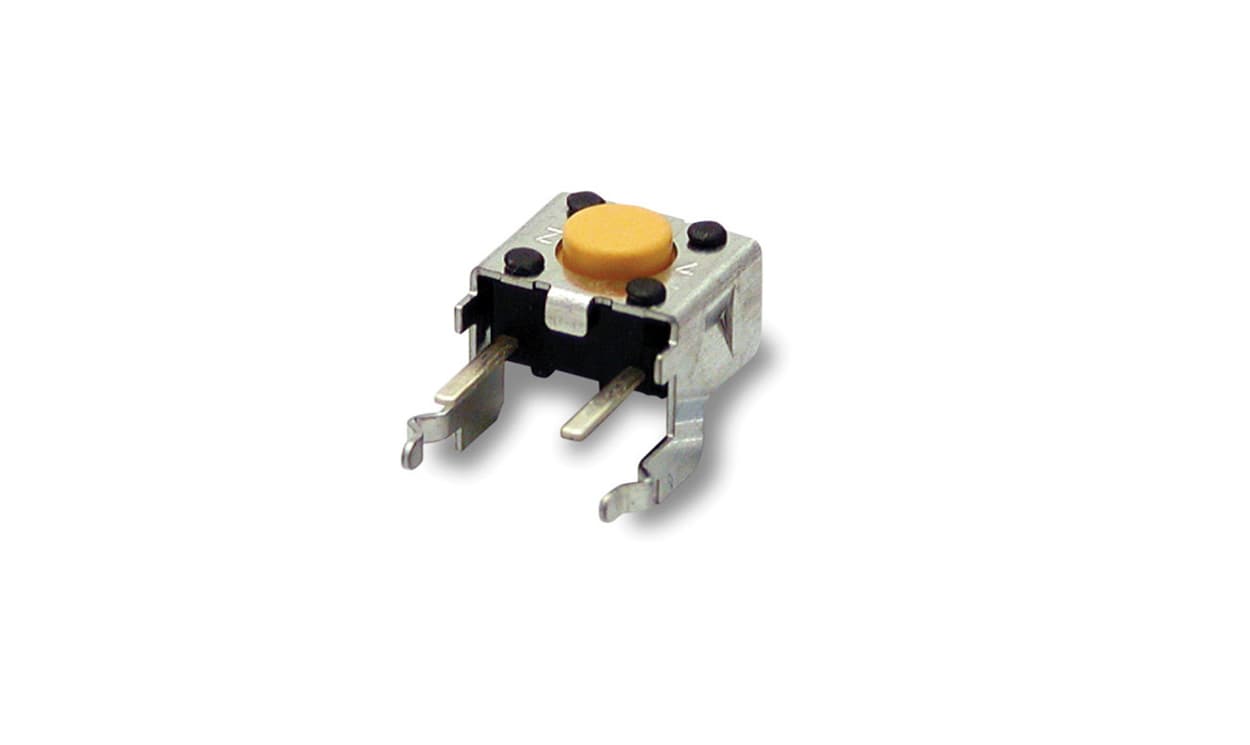

OMRON B3F-3100 | Plunger Tactile Switch | 6 mm Actuator, Ivory, Through Hole

Name: OMRON B3F-3100 | Plunger Tactile Switch | 6 mm Actuator, Ivory, Through Hole
Brand: OMRON
SKU: B3F-3100
Availability: OutOfStock

Part Number : B3F-3100

The OMRON B3F-3100 is an SPST through-hole ivory plunger tactile switch with a 6 mm actuator.

Contact rating: 1.2 VA
Switch operation: Momentary
Terminal type: PCB

Availability: in stock

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3F3000 series (6 x 6 mm)

Models with a vertical body and horizontal actuator.

The Omron tactile switch of 6 x 6 through hole mounting model have silver plated contact materials and bags with ground terminals. It has an ivory coloured flat type plunger with a height of 3.15 mm and an operating force of 0.98 N.

Contact form SPST-NO
Contact resistance initial value 100 mΩ max
Insulation resistance 100 MΩ min at 250 VDC with insulation tester
Dielectric strength 500 VAC, 50/60 Hz for 1 min
Bounce time 5 ms max

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	PCB
Switch Operation	Momentary
Actuator Length	6mm
Actuator Colour	Ivory
Actuator Type	Plunger
Mounting Type	Through Hole
Contact Current Rating	1.2 VA
