OMRON B3F-1025 | Plunger Tactile Switch | 6 x 6 mm, 2.55 N, Through Hole

Name: OMRON B3F-1025 | Plunger Tactile Switch | 6 x 6 mm, 2.55 N, Through Hole
Brand: OMRON
SKU: B3F-1025
Availability: OutOfStock

Part Number : B3F-1025

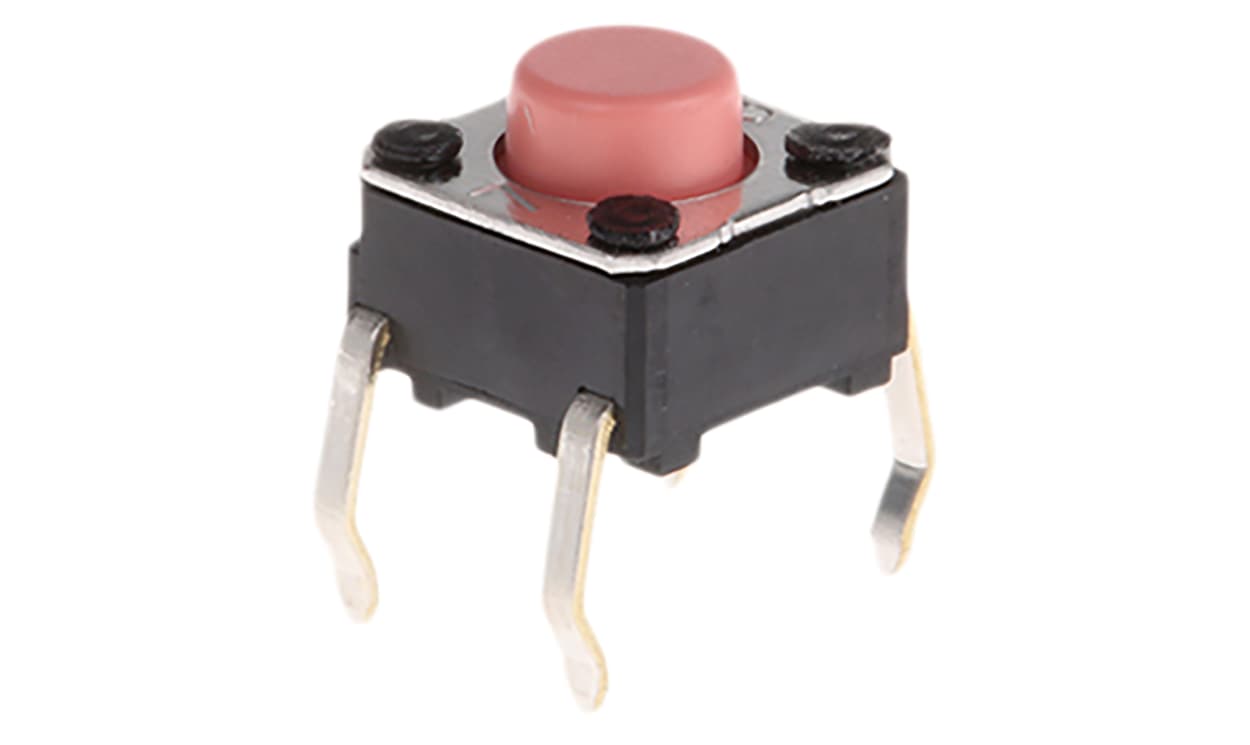

OMRON's B3F-1025 pink plunger tactile switch is rated 50 mA at 24 V DC and has a 0.9 mm actuator. Listed figures for the B3F-1025 cover a mechanical life of 1,000,000 operations and an operating temperature range of -25 to +70 °C.

Contact configuration: SPST
Operating force: 2.55 N
Dimensions: 6 x 6 x 5 mm
Contact material: gold plated
Mounting: through hole

Availability: in stock

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3F1000 series (6 x 6 mm)

Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators

Positive click action plus a long life equal to that of a no-contact switch.

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Length	0.9mm
Actuator Colour	Pink
Actuator Type	Plunger
Length	6mm
Width	6mm
Dimensions	6 x 6 x 5mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Height	5mm
Operating Force	2.55 N
Mechanical Life	1000000Operations
Operating Temperature Range	-25 → +70°C
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-25°C
Contact Material	Gold Plated
