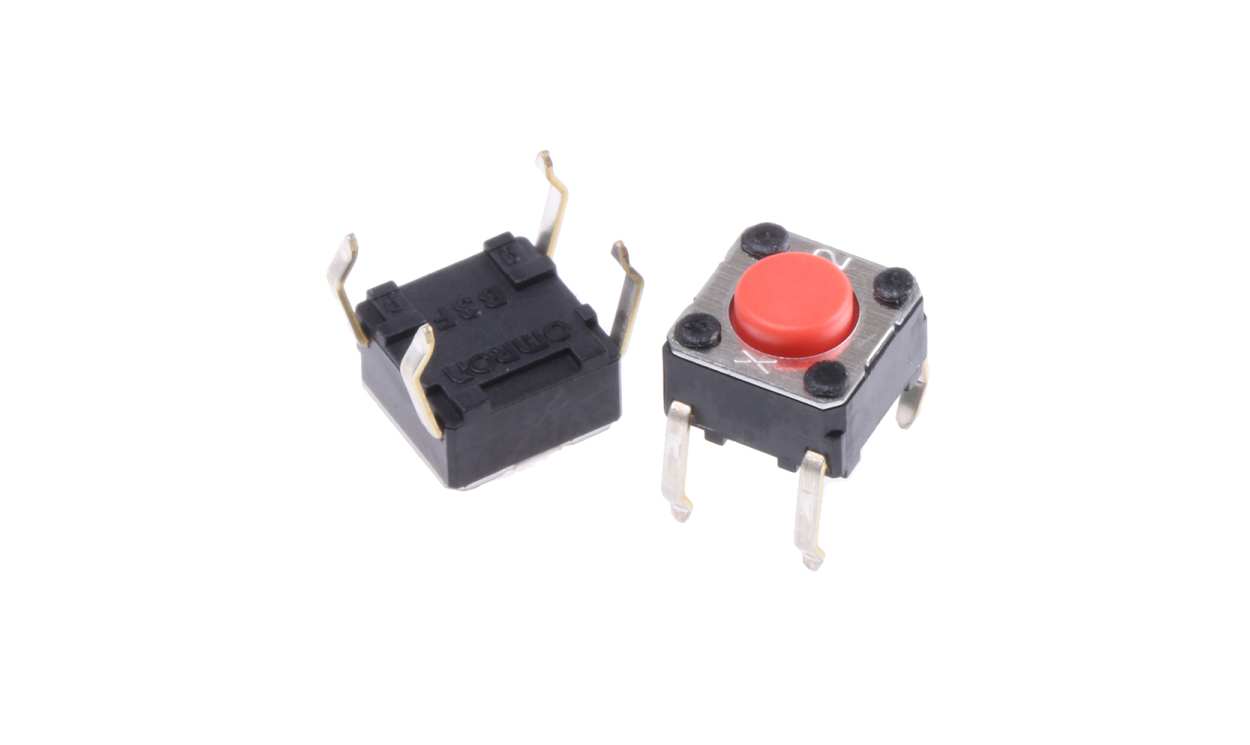

OMRON B3F-1006 | Plunger Tactile Switch | 6 x 6 mm, 4.9 N, Through Hole

Name: OMRON B3F-1006 | Plunger Tactile Switch | 6 x 6 mm, 4.9 N, Through Hole
Brand: OMRON
SKU: B3F-1006
Availability: OutOfStock

Part Number : B3F-1006

The OMRON B3F-1006 is an SPST through-hole plunger tactile switch with a 4.9 N operating force, rated 50 mA at 24 V DC. The B3F-1006 offers a mechanical life of 50,000 operations, an operating temperature range of -25 to +70 °C and gold plated contacts.

Actuator length: 0.9 mm
Dimensions: 6 x 6 x 4.3 mm
Contact configuration: SPST

Availability: in stock

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3F1000 series (6 x 6 mm)

Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators

Positive click action plus a long life equal to that of a no-contact switch.

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Length	0.9mm
Actuator Type	Plunger
Length	6mm
Width	6mm
Dimensions	6 x 6 x 4.3mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Height	4.3mm
Operating Force	4.9 N
Mechanical Life	50000Operations
Operating Temperature Range	-25 → +70°C
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-25°C
Contact Material	Gold Plated
