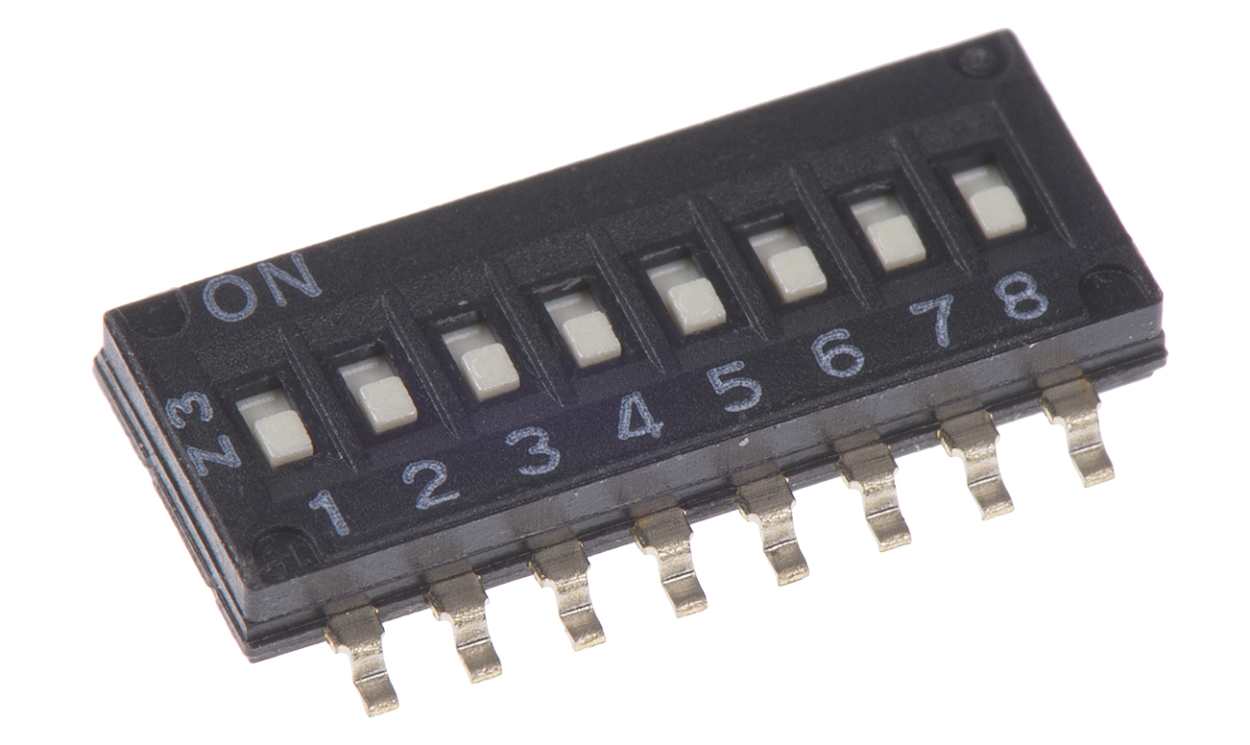

Omron A6H-8102, 8 Way Surface Mount DIP Switch 8P

Name: Omron A6H-8102, 8 Way Surface Mount DIP Switch 8P
Brand: OMRON
SKU: A6H-8102
Availability: OutOfStock

Part Number : A6H-8102

Availability: Sold out

Detailed Description
Specifications
Downloads

Ultra Low Profile Half Pitch Switches

A range of half pitch surface mount DIL switches. Being half pitch this reduces the mounting space by 63%.

Half pitch with ultra Low profile of 1.55mm
Available with or without tape seal
Surface mount
Contact resistance: 200mΩ
Insulation resistance: 100MΩ min @ 250Vdc
Mechanical life: 1000 operations
RoHS compliant

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Brand	Omron
Number of Positions	8
Mounting Type	Surface Mount
Contact Configuration	8P
Package Style	DIP
Actuator Type	Slide
Contact Current Rating	25 mA@ 24 V dc
Mechanical Life	1000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +70°C
Dielectric Strength	300V ac
