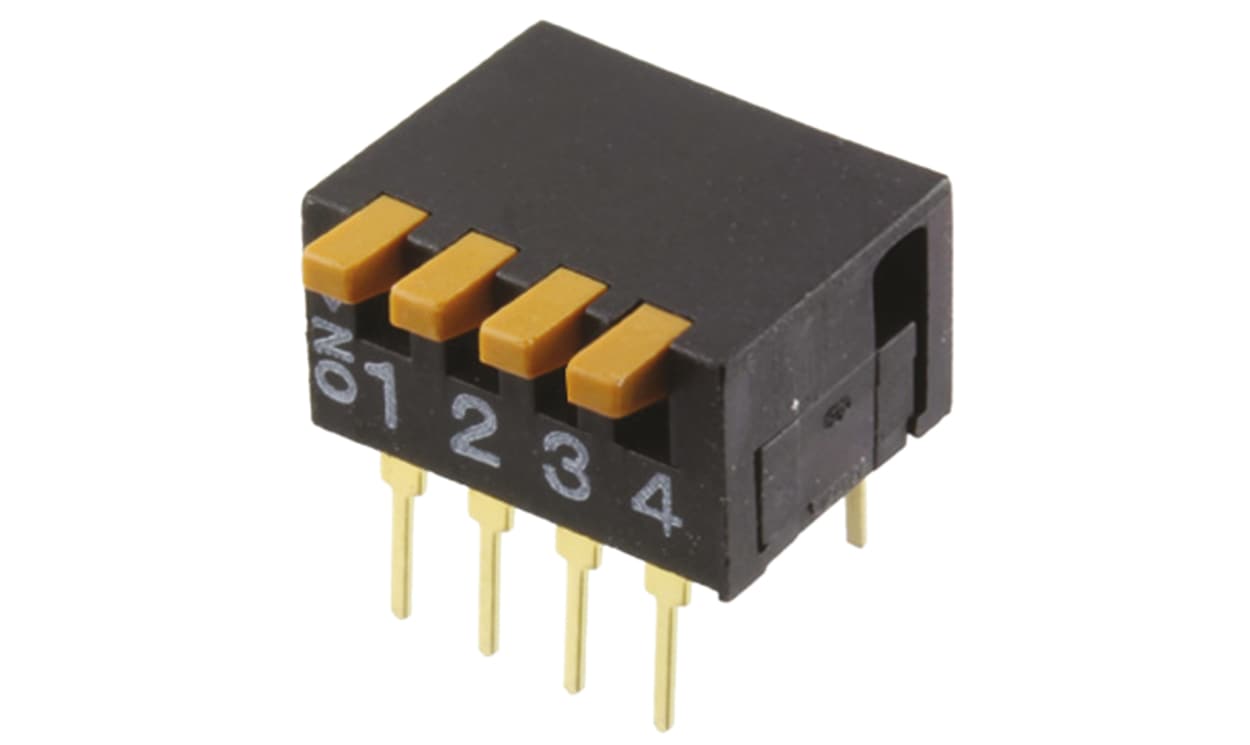

Omron A6DR-4100, 4 Way Through Hole DIP Switch 4PST, Piano Actuator

Name: Omron A6DR-4100, 4 Way Through Hole DIP Switch 4PST, Piano Actuator
Brand: OMRON
SKU: A6DR-4100
Availability: OutOfStock

Part Number : A6DR-4100

Availability: Sold out

Detailed Description
Specifications
Downloads

Dustproof Slide Switches

A range of high performance DIP switches with dustproof construction.

PCB through hole mount
RoHS compliant
Gold plated twin contacts, self-cleaning
Smooth, sure switching action
Contact resistance:100mΩ max
Insulation resistance: 100mΩ min. at 250Vdc
Mechanical life: 5 x 10³

Note

Unless stated otherwise, these switches are not suitable for immersion cleaning

Brand	Omron
Number of Positions	4
Mounting Type	Through Hole
Contact Configuration	4PST
Contact Material	Gold Plated
Package Style	DIP
Actuator Type	Piano
Contact Current Rating	100 mA@ 5 V dc
Mechanical Life	5000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +70°C
Dielectric Strength	500V ac
