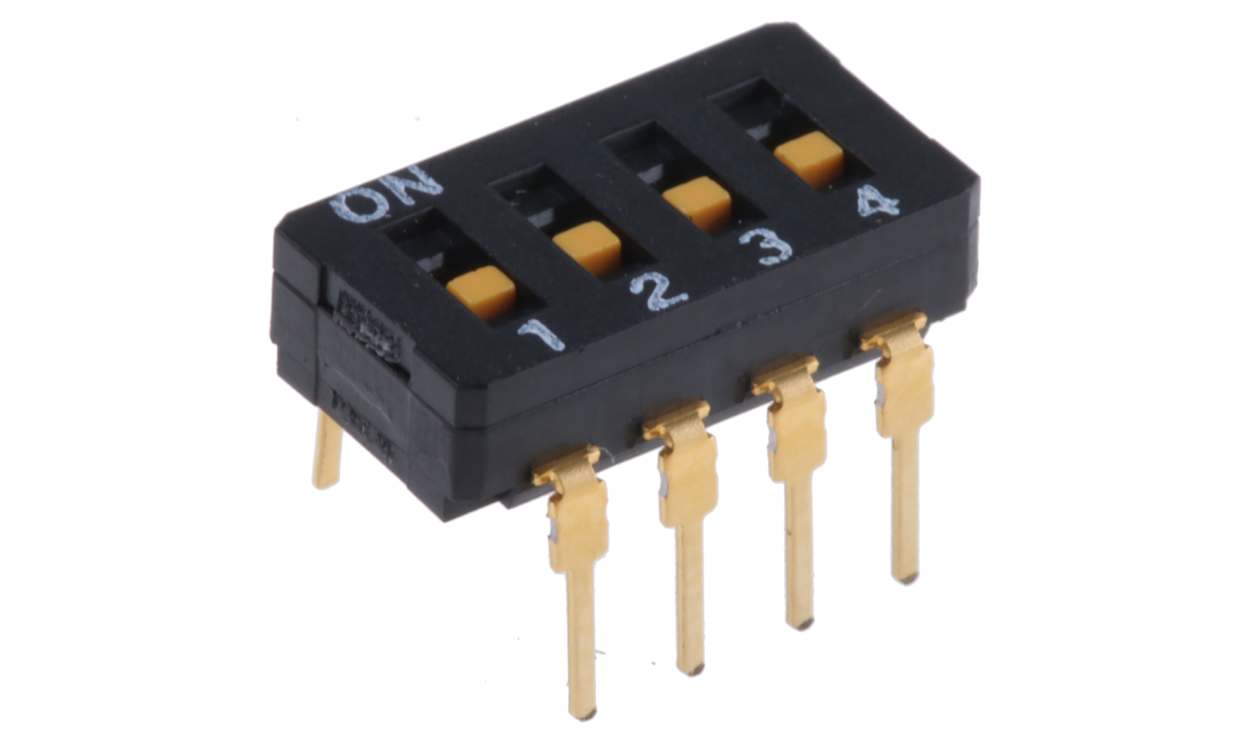

Omron A6D-4100, 4 Way Through Hole DIP Switch 4PST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron A6D-4100, 4 Way Through Hole DIP Switch 4PST

Name: Omron A6D-4100, 4 Way Through Hole DIP Switch 4PST
Brand: OMRON
SKU: A6D-4100
Availability: OutOfStock

Part Number : A6D-4100

Availability: Sold out

Detailed Description
Specifications
Downloads

Low profile Top Actuated Switches

Fully sealed internally (not tape sealed) suitable for immersion cleaning and automated assembly equipment
Bifurcated gold-plated contacts for reliability of operation and self-cleaning action.
Contact resistance: 100mΩ
BT approval to D8173

Note

Unless stated otherwise, these switches are not suitable for immersion cleaning

Approvals

D8173

Brand	Omron
Number of Positions	4
Mounting Type	Through Hole
Contact Configuration	4PST
Contact Material	Beryllium Copper
Package Style	DIP
Actuator Type	Slide
Contact Current Rating	100 mA@ 5 V dc
Mechanical Life	5000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +70°C
Dielectric Strength	500V ac
