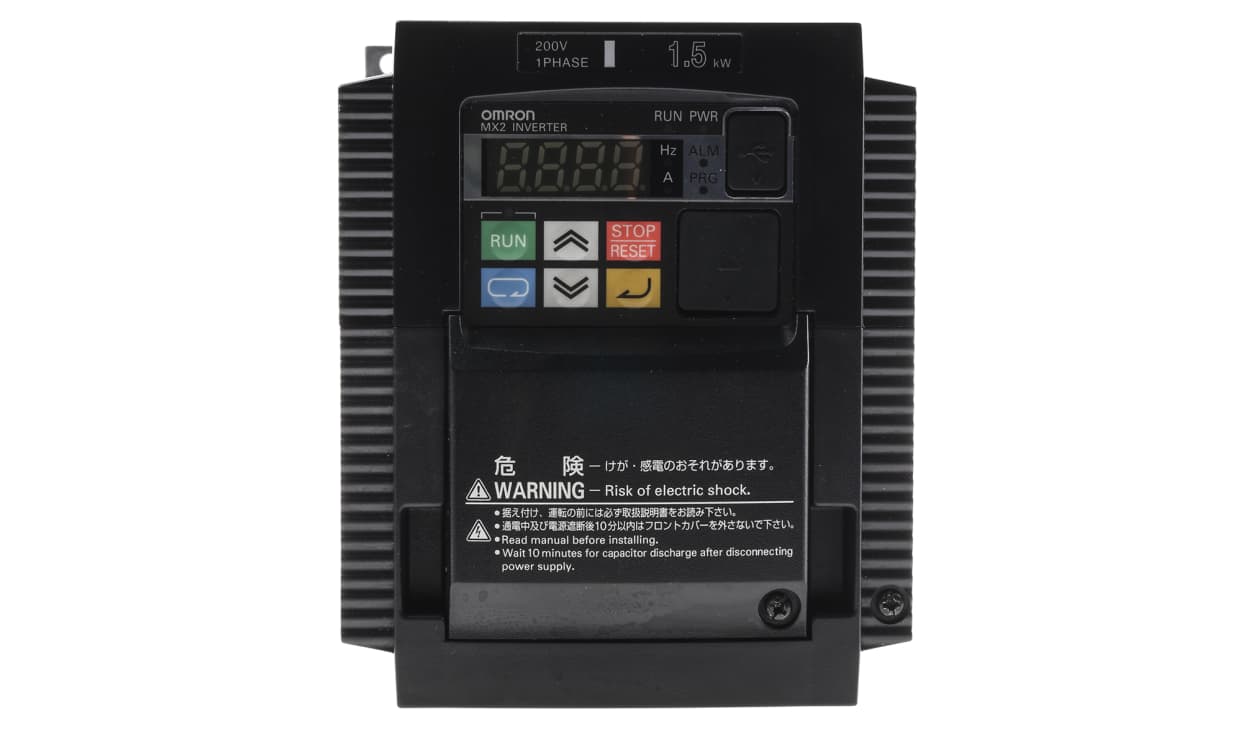

OMRON 3G3MX2-AB015-EV2 | MX2 Inverter Drive | 1.5 kW, 1-Phase 230 V AC, 8.0 A

Name: OMRON 3G3MX2-AB015-EV2 | MX2 Inverter Drive | 1.5 kW, 1-Phase 230 V AC, 8.0 A
Brand: OMRON
SKU: 3G3MX2-AB015-EV2
Availability: OutOfStock

Part Number : 3G3MX2-AB015-EV2

The OMRON 3G3MX2-AB015-EV2 is a 1.5 kW inverter drive for AC motors, rated 8.0 A on single-phase 230 V AC. It has a control panel, STO, IP20, a 400 Hz output frequency and CE and cULus marks.

1.5 kW, 8.0 A
Single-phase 230 V AC
400 Hz output frequency
STO, IP20, control panel
Profibus listed, CE, cULus
108 x 128 x 170.5 mm (W x L x D)

Availability: in stock

Detailed Description
Specifications
Downloads

Omron MX2 Single and Three Phase Input

Specifically created for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its fast CPU’s and advanced algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop.

Features and benefits

Up to 15 kW
200% starting torque and torque control in open loop
Double rating VT 120%/1min and CT 150%/1min
IM & PM Motor control
Safety conforming to ISO13849-1 Category3 performance level PLD
Logic programming
Current vector control
High starting torque: 200% at 0.5Hz
Double rating VT 120%/1min and CT 150%/1min
Speed range up to 1000 Hz
Torque control in open loop vector
Positioning functionality
Built-in application functionality (i.e. Brake control)
User programmable as standard
Safety embedded compliant with ISO13849-1 (double input circuit and external device monitor EDM)
USB port for PC programming
24 Vdc backup supply for control board
Fieldbus communications: Modbus, DeviceNet, Profibus, Componet, Ethercat, ML-II and CanOpen

Omron 3G3MX2 Series Inverter Drive, 1.5kW Power Rating, 8A Current - 3G3MX2AB015ECHN

This inverter drive is designed for efficient motor control in various applications. The compact dimensions, with an overall depth of 170.5mm, length of 128mm, and width of 108mm, make it suitable for installations with limited space. It operates on a single-phase 230V AC supply, supporting AC motors and delivering a power rating of 1.5 kW. With an output frequency of up to 400 Hz, it ensures precise control and flexibility in performance.

Features & Benefits

• High starting torque of 200% at 0.5 Hz enables swift acceleration
• Built-in safety features meet ISO13849-1 compliance for enhanced protection
• Supports Profibus communication for seamless integration with automation systems
• STO compliant inverter drive ensures safety during operation interruptions
• Advanced vector control provides precise motor performance management
• IP20 rated for indoor use, protecting against solid particles

Applications

• Utilised for controlling AC motors in automation processes
• Integrated into conveyor systems for material handling
• Effective in robotics for precise motion control
• Suitable for HVAC for efficient airflow regulation
• Employed in manufacturing machinery for reliable operation

How does the high starting torque benefit motor applications?

The high starting torque allows motors to reach operational speeds quickly, reducing the time required for the machine to start up. This can improve overall productivity and efficiency in applications where rapid acceleration is crucial.

What communication types does it support for integration with existing systems?

It supports multiple fieldbus communication types, including Profibus, Modbus, DeviceNet, CompoNet, EtherCAT, and EtherNet/IP, facilitating easy integration into diverse automation environments.

What are the implications of the IP20 rating for installation?

The IP20 rating indicates protection against solid objects greater than 12mm, making it suitable for indoor use. However, care should be taken to avoid exposure to water or excessive dust in the installation environment.

Omron MX2 range

The MX2 is specifically designed to drive machines. It has been developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop. The MX2 also gives you comprehensive functionality for machine control such as positioning, speed synchronisation and logic programming. The MX2 is fully integrated within the Omron smart automation platform.

Brand	Omron
Power Rating	1.5 kW
Phase	1
Supply Voltage	230 V ac
Current Rating	8.0 A
Series	3G3MX2
For Use With	AC Motors
Field Bus Communication Type	Profibus
IP Rating	IP20
Output Frequency	400Hz
STO	Yes
Drive Type	CX
Control Panel	Yes
Overall Depth	170,5mm
Overall Width	108mm
Overall Length	128mm
Standards Met	CE, cULus

OMRON 3G3MX2-AB015-EV2 | MX2 Inverter Drive | 1.5 kW, 1-Phase 230 V AC, 8.0 A

DOWNLOAD CATALOG

3G3MX2-AB015-EV2 Guide - 3G3MX2-Series Inverter A700000013143050

3G3MX2-AB015-EV2 Instruction Sheet - MX2 Series A700000013143066

3G3MX2-AB015-EV2 Manual - MX2 Series A700000013143086
