Norbar PneuTorque PT 2 Automatic Two Speed Pneumatic Torque Multiplier 700-1700NM, Square Size: 1"

Name: Norbar PneuTorque PT 2 Automatic Two Speed Pneumatic Torque Multiplier 700-1700NM, Square Size: 1"
Brand: Norbar
SKU: 16013.AUT
Availability: OutOfStock

Part Number : 16013.AUT

The 'Standard Series' line, which is based on the original PneuTorque, is the direct product of over 30 years of refining and research required to stay up with today's industrial standards. PneuTorque Wrenches are the cornerstone of Norbar's powered tool collection, and they're still in use on tens of thousands of applications around the world. The Automatic Two Speed gearbox saves time in the same way that the'manual' version does, but without the need for user interaction. The tightening cycle can be completed faster because the Automatic gearbox changes without having to stop the tool.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Accuracy	+/-5%
Air Consumption	19 litres/sec
Brand	Norbar
Free Run High Speed	45 revs/min
Free Run Low Speed	9 revs/min
Max Air Pressure	4.2 bar
Model Number	PT 2 Automatic Two Speed
Product Number	16013.AUT
Range Imperial	516 - 1250 lbf·ft
Range Metric	700 - 1700 N·m
Reac Plate Torque	9 N.m
Reac Plate Weight	2.2 Kg
Square Size	1"
Tool Weight	14.6 Kg
Vel Ratio High Speed	93.137:1
Vel Ratio Low Speed	508.019:1

A variety of reaction styles are available for maximum versatility.
Electronic torque transducers can be fitted for precise torque monitoring.
Models available for almost every bolting application.
Forward and reverse operation.
Low operator fatigue - quiet, non impacting or pulsing.
Repeatability of ±5%.

Norbar PneuTorque PT 2 Automatic Two Speed Pneumatic Torque Multiplier 700-1700NM, Square Size: 1"

DOWNLOAD CATALOG

Norbar PneuTorque PT 2 Automatic Two Speed Pneumatic Torque Multiplier 700-1700NM, Square Size: 1"

Norbar HT60 Manual Torque Multipliers 600-6000NM

Norbar PneuTorque PT 5-Automatic Two Speed Pneumatic Torque Multiplier 880-3400NM, Square Size: 1"

Norbar PneuTorque PT 5-Manual Two Speed Pneumatic Torque Multiplier 880-3400NM, Square Size: 1"

Norbar PneuTorque PT 5-Single Speed Pneumatic Torque Multiplier 880-3400NM, Square Size: 1"

Norbar PneuTorque PT 2-Automatic Two Speed Pneumatic Torque Multiplier 515-1700NM, Square Size: 3/4"

Norbar PneuTorque PT 1A-Automatic Two Speed Pneumatic Torque Multiplier 400-1200NM, Square Size: 3/4"

Norbar PneuTorque PT 1-Single Speed Pneumatic Torque Multiplier 160 - 680NM, Square Size: 3/4"

Norbar PneuTorque PT 7 Single Speed Pneumatic Torque Multiplier 1762-6000NM, Square Size: 1 1/2"

Meet Us F2F

Brannan 85/105/0 | Industrial V-Line Thermometer | 90° angle, 150 mm, Polypropylene, -30 to +50 °C/°F, 100 mm pocket

Brannan 85/104/0-M | Industrial V-Line Thermometer | 90° angle, 150 mm, Aluminium, -30 to +50 °C/°F, 75 mm pocket

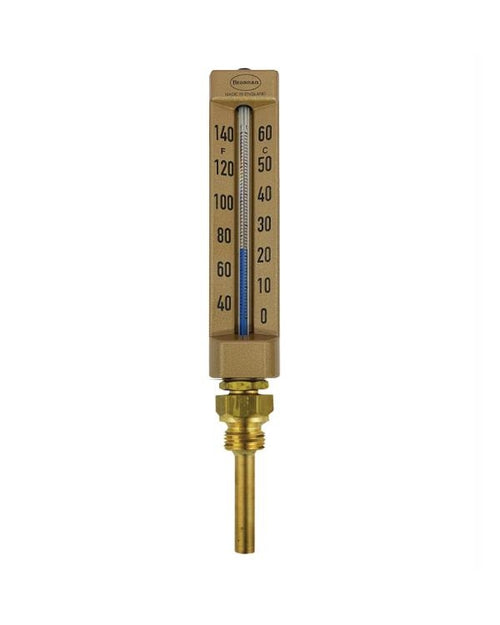

Brannan 85/104/0 | Industrial V-Line Thermometer | 90° angle, 150 mm, Polypropylene, -30 to +50 °C/°F, 75 mm pocket

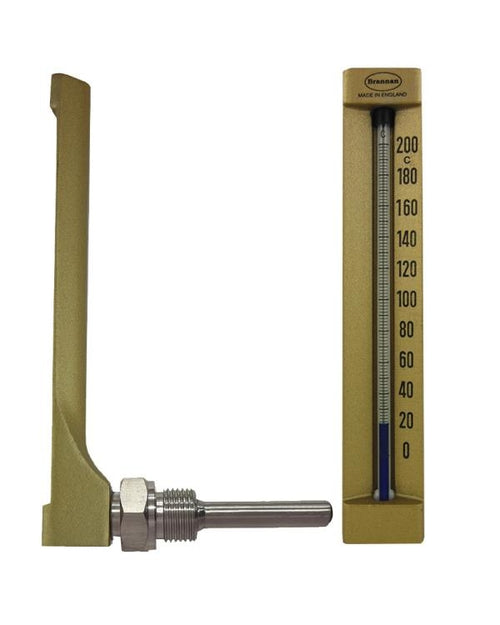

Brannan 85/103/0-M | Industrial V-Line Thermometer | 90° angle, 150 mm, Aluminium, -30 to +50 °C/°F, 63 mm pocket
