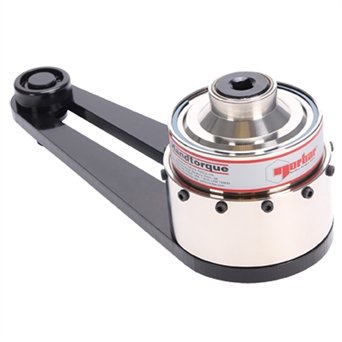

Norbar Manual HT 5/25 Torque Multipliers 340-3400NM, Input Square: 1/2", Output Square: 1"

Name: Norbar Manual HT 5/25 Torque Multipliers 340-3400NM, Input Square: 1/2", Output Square: 1"
Brand: Norbar
SKU: 16090
Availability: OutOfStock

Part Number : 16090

Multiple stages of epicyclic gearing are used in Norbar's 'HandTorque' multipliers to provide a wide range of torque outputs and ratios to suit most applications. The torque multiplication ratio is always quoted, not the velocity ratio as some competitors' goods claim. For example, a velocity ratio of 29.8:1 would result in a torque multiplication of 25:14%.

Availability: Sold out

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Accuracy	+/-4%
Brand	Norbar
Input Square	1/2"
Max Input Speed	105 revs/min
Model Number	HT 5/25
Multiplication Ratio	27:1
Output Square	1"
Plate Torque	19 N.m
Plate Weight	2.5 Kg
Product Number	16090
Range Imperial	250 - 2500 lbf·ft
Range Metric	340 - 3400 N·m
Tool Weight	7.5 Kg
Velocity Ratio	29.752:1

A variety of reaction styles are available for maximum versatility.
Electronic torque transducers can be fitted for precise torque monitoring.
True torque multiplication guaranteed better than +/-4%.
High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
Anti Wind-Up Ratchet available on models of 25:1 ratio and above.
