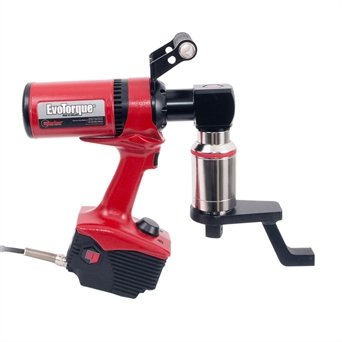

Norbar EvoTorque 2 with Right Angle Gearbox,100.00 - 1000.00 N·m, 3/4" Square Drive

Name: Norbar EvoTorque 2 with Right Angle Gearbox,100.00 - 1000.00 N·m, 3/4" Square Drive
Brand: Norbar
SKU: 180230.B06.RA
Availability: OutOfStock

Part Number : 180230.B06.RA

The Right Angle Gearbox allows Norbar's electronic torque instruments to be used in a variety of situations where they are now unavailable owing to space constraints.

Availability: Sold out

Free Saudi Arabia shipping available

Specifications
Features

Accuracy	+/-3%
Brand	Norbar
Height	427mm
Length	464mm
Model Number	ET2-72
Product Number	180220.B06.RA
Range Imperial	74.0 - 740.0 lbf·ft
Range Metric	100.0 - 1000.0 N·m
rpm	21
Square Drive	3/4"
Weight	14.06kg

Allows more comfortable operation of the EvoTorque2 on vertically bolting applications at chest height and above as the pistol grip is presented correctly to the operator
The tool handle can rotate 360° in relation to the Right Angle Gearbox allowing the most comfortable and safest position to be found
Each tool is supplied with a traceable calibration certificate
Torque, Torque & Angle, Torque & Angle with Final Torque or Torque Audit Modes
'Usage' counter gives the ability to see the amount of times the tool has been used since the last reset
"Operation Direction" designed primarily for undoing bolts. When doing sequence tightening, it is now possible to undo an incorrectly tightened bolt without interrupting the sequence
2 Stage Tightening gives faster application of a Snug Torque & Angle Target
"Turn Angle" option can be used to check if bolts have already been tightened in an assembly process
Allows tool integration into third party control systems
Maximum Audit Mode target angle increased to 720 degrees
Ability to produce and store real time graphs via EvoLog
2 different lock levels, lock level 1 as per previous lock, lock level 2 will not allow user to exit the run screen or change the target
