Part Number : 810-401-13-ASET1

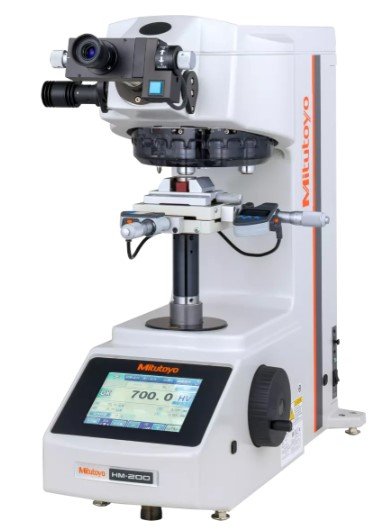

The Mitutoyo 810-401-13-ASET1 is a Micro Vickers Hardness Testing Machine, featuring the HM-210 A-Type Set, designed for high-accuracy hardness evaluation of micro-scale materials. It operates reliably within a temperature range of 5 to 40°C and is resistant to vibrations below 5 Hz. Weighing 41 kg, the unit ensures excellent stability during testing. Ideal for material research and quality control labs needing manual precision. This set includes additional components compared to the base unit for expanded testing capability.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Dimensions	External dimensions WxDxH : 341x670x581 mm
Light Source	Light source illumination unit : White LED
Mass (main unit)	41 kg
Operation temperature	5-40
Optical system	Infinitely corrected
POWER CONSUMPTION	31
Power Supply	AC100 -240V Auto-selection
Relative Humidity	80% or lower without condensation
Series	810
Standard	Standard objective lenses : MH Plan 10x and 50x
Type	Micro Vickers Hardness Testing Machine
Vibration	5Hz or lower

Enhanced A-Type Set Configuration – Includes added accessories for greater functionality compared to the base HM-210 unit.
Precision Microhardness Testing – Delivers consistent and repeatable Vickers hardness results on microstructures.
Manual Operation with Stable Build – 41 kg weight ensures secure placement and reliable manual handling.
Controlled Environmental Performance – Functions optimally between 5–40°C and below 5Hz vibration.
High-Quality Optical System – Ensures clear visibility of indentations for accurate hardness readings.
