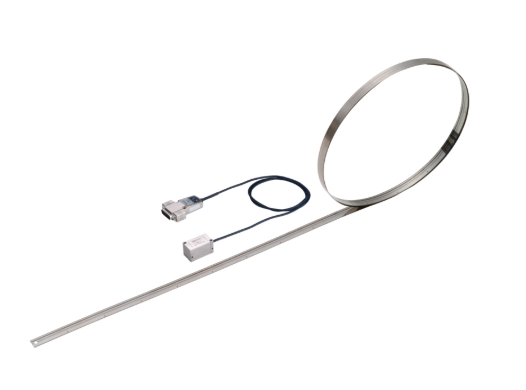

Mitutoyo 579-446-53 | Absolute Tape Scale | ST1351A-1700F, 12 m, 0.001 µm
The Mitutoyo 579-446-53 is an ST1300 Series absolute tape scale, model ST1351A-1700F, offering a maximum effective length of 12 m with 0.001 µm minimum resolution and a maximum response speed of 8 m/s. It is used for linear position measurement, and because it measures absolutely, the 579-446-53 needs no re-referencing after a power cycle.
- Model number ST1351A-1700F (Mitutoyo code 579-446-53)
- Maximum effective length of 12 m (579-446-53)
- Minimum resolution 0.001 µm for the 579-446-53
- Maximum response speed 8 m/s, 579-446-53
- FANUC high-speed serial interface on the 579-446-53
- Absolute measurement with no re-referencing after power-on (579-446-53)
- Specifications
- Features
- Downloads
| Part Number | 579-446-53 |
| Brand | Mitutoyo |
| Model Number | ST1351A-1700F |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
- Absolute Measurement System: Eliminates the need for re-referencing after power cycles, enhancing operational efficiency.
- High-Resolution Output: Offers a minimum resolution of 0.001 µm, ensuring exceptional measurement accuracy.
- Extended Measurement Range: Supports a maximum effective length of 12 meters, suitable for large-scale applications.
- High-Speed Capability: Operates at speeds up to 8 m/s, ideal for dynamic systems.
- Industrial Durability: Designed to perform reliably in harsh environments, ensuring long-term stability.
- Flexible Installation Options: Offers double-sided tape mounting for easy integration into various setups.
