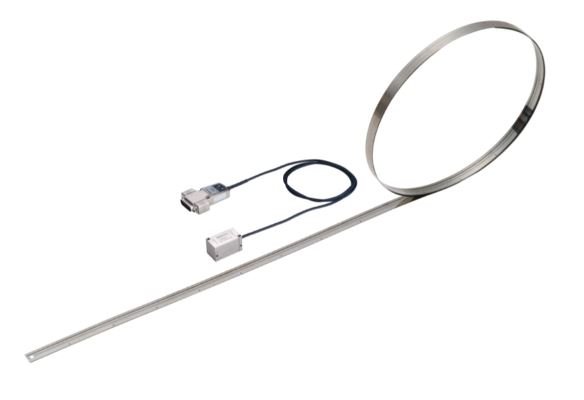

Mitutoyo 579-434-54 | Absolute Tape Scale | ST1300, model ST1352A-500F, 12 m max. length
Model ST1352A-500F, sold under part number 579-434-54, is a Mitutoyo ST1300 absolute tape scale rated for 12 m maximum effective length and 0.001 µm resolution. Use the 579-434-54 where linear position must be read over long travel.
- 0.001 µm (1 nm) minimum resolution for the 579-434-54
- Model ST1352A-500F rated to a maximum response speed of 8 m/s
- 579-434-54 covers a maximum effective length of 12 m
- FANUC high-speed serial output for the 579-434-54
- Model ST1352A-500F offers stated robustness against contamination
- Mounting choices for the 579-434-54: double-sided tape or tension
- Specifications
- Features
- Downloads
| Part Number | 579-434-54 |
| Brand | Mitutoyo |
| Model Number | ST1352A-500F |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
| Mounting | Double-sided tape or tension |
| Contamination Resistance | Yes |
- Ultra-High Resolution (0.001 µm)
- Delivers exceptional precision with a minimum resolution of 0.001 µm (1 nanometer), ideal for applications requiring fine measurement detail.
- Extended Measuring Range
- Supports a maximum effective length of 12 meters, ideal for large-scale industrial applications and long-range measurements.
- High-Speed Performance
- Capable of a maximum response speed of 8 m/s, ensuring fast and efficient data acquisition in dynamic environments.
- Advanced Detection Technology
- Features enhanced resistance to contamination, providing stable and reliable performance in challenging industrial conditions.
- Flexible Installation Options
- Offers multiple mounting methods, including double-sided tape and tension mounting, providing versatility in installation for different machine configurations.
