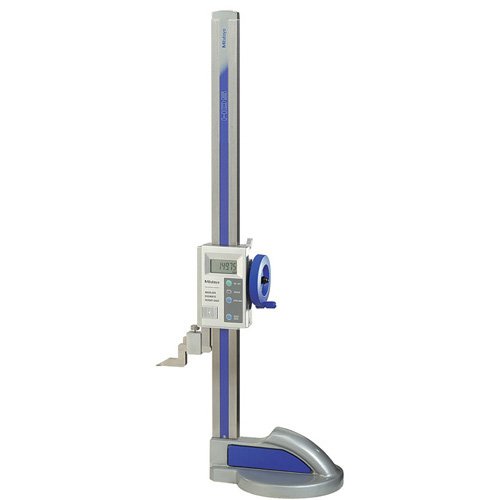

Mitutoyo 570-313 | Digital Height Gauge | 0-450 mm / 0-18 in, 0.01 mm
The Mitutoyo 570-313 is a Digital Height Gauge with a 0-450 mm / 0-18 in range and 0.01 mm resolution. Accuracy is stated as ±0.05 mm (±0.002 in).
- Ergonomic base and large, smooth slider feed wheel
- Rigid column structure
- ABSOLUTE linear encoder, no overspeed errors
- SPC data output
- Specifications
- Features
- Downloads
| Part Number | 570-313 |
| Brand | Mitutoyo |
| Range | 0-450 mm / 0-18 in |
| Digital Step / Resolution | 0.01 mm / 0.0005 in |
| Accuracy (MPE) | ±0.05 mm (±0.002 in) |
| Functions | Digimatic data output |
Allows smooth elevation by the slider adjustment wheel, which is the same type used on the wellestablished double-column height gauge.
• Large slider-clamp lever ensures positive and accurate clamping action.
• Character height of the LCD display is 10 mm.
• Due to the built-in ABSOLUTE scale function, origin setting is not required each time power is turned ON.
• Ergonomic and stylish base fits comfortably in the hand.
• Allows integration into statistical process control and measurement systems.
• High durability and high accuracy are ensured by an improved column design (35 x 15 mm).
