Part Number : 543-796B-10

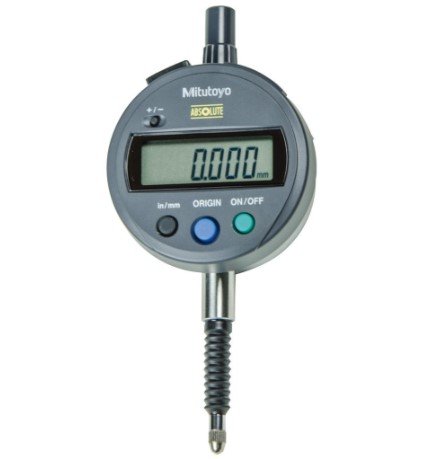

The Mitutoyo 543-796B-10 Digital Indicator ID-S Series 543 adheres to ASME/ANSI standards, offering high-precision measurements with a digital step of 0.00005 inch and hysteresis of 0.0001 inch. Its 0.5-inch measuring range makes it ideal for fine, detailed measurement tasks. With a 9.52 mm diameter, it fits into tight spaces for versatile use. Weighing just 140 g, it provides a balance of portability and stability. The digital display ensures quick, clear, and accurate readings for improved efficiency. Built for durability, it guarantees reliable performance in industrial and precision measurement applications.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.00005 Inch or 0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.0001 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
Model Number	ID-S112PEXB2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	140 g

ASME/ANSI Compliance: Meets ASME/ANSI standards for accuracy and reliability in professional settings.
Exceptional Precision: Digital step of 0.00005 inch and hysteresis of 0.0001 inch for highly accurate measurements.
Measuring Range: 0.5-inch range, ideal for detailed and small-scale measurements.
Compact Size: 9.52 mm diameter, perfect for use in tight or restricted spaces.
Lightweight: Weighs 140 g, providing easy handling and portability without sacrificing stability.
Clear Digital Display: Provides fast, precise, and easy-to-read digital results for enhanced efficiency and accuracy.
