Part Number : 543-796-10

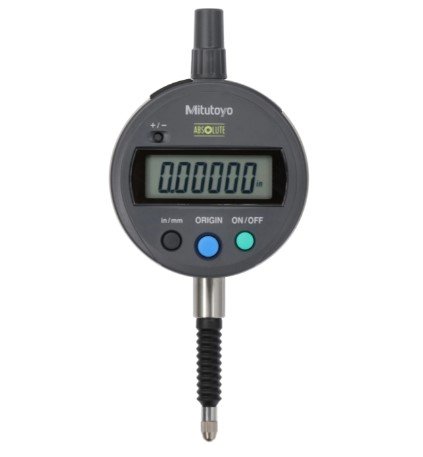

The Mitutoyo 543-796-10 Digital Indicator ID-S Series 543 meets ASME/ANSI standards, offering precise measurements with a digital step of 0.00005 inch and hysteresis of 0.0001 inch. Its 0.5-inch measuring range is ideal for fine, detailed measurement tasks. With a compact 9.52 mm diameter, it is suitable for use in tight spaces. Weighing 150 g, it provides the perfect balance of portability and stability for easy handling. The digital display ensures quick, clear readings, enhancing accuracy and efficiency. Designed for durability, it delivers reliable performance in industrial and precision measurement applications.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.00005 Inch or 0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.0001 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
Model Number	ID-S112PEX2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	150 g

ASME/ANSI Compliance: Meets ASME/ANSI standards for professional-grade accuracy and performance.
High Precision: Digital step of 0.00005 inch and hysteresis of 0.0001 inch for ultra-precise measurements.
Measuring Range: 0.5-inch range, ideal for accurate and detailed measurement tasks.
Compact Design: 9.52 mm diameter, making it easy to use in tight or restricted spaces.
Lightweight: Weighs 150 g, offering portability without compromising stability.
Clear Digital Display: Quick, easy-to-read digital display for accurate measurement results and enhanced efficiency.

DOWNLOAD CATALOG
