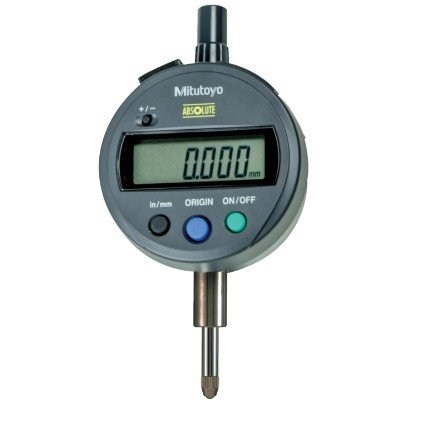

Mitutoyo 543-792B-10 | Digital Indicator ID-S | Series 543 | Type ASME/ANSI | Digital Step 0.00005 Inch | Hysteresis 0.0001 Inch | Range 0.5 Inch | Diameter 9.52 mm | Weight 140 g - generaltechuae

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-792B-10

The Mitutoyo 543-792B-10 Digital Indicator ID-S Series 543 adheres to ASME/ANSI standards, offering exceptional precision with a digital step of 0.00005 inch and hysteresis of 0.0001 inch. It features a 0.5-inch measuring range, ideal for precise and detailed measurements. The 9.52 mm diameter allows for convenient use in confined spaces. Weighing just 140 g, it is lightweight and easy to handle. The digital display ensures quick and clear readings for accurate results. Built for durability, it provides reliable performance in industrial and precision measurement applications.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.00005 inch or 0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 inch or 0.002 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.0001 inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S112EXB2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	140 g

ASME/ANSI Compliance: Conforms to ASME/ANSI standards for accurate and reliable measurement.
High Precision: Digital step of 0.00005 inch and hysteresis of 0.0001 inch for exceptional accuracy.
Measuring Range: 0.5-inch range, ideal for small-scale, detailed measurements.
Compact Design: 9.52 mm diameter, making it suitable for use in tight or limited spaces.
Lightweight: Weighs only 140 g, offering portability and ease of use.
Clear Digital Display: Provides fast, clear, and accurate digital readouts for efficient measurements.

DOWNLOAD CATALOG
