Mitutoyo 543-783B-10 | Digital Indicator ID-S | Series 543 | Type ASME/ANSI | Digital Step 0.0005 Inch | Hysteresis 0.001 Inch | Range 0.5 Inch | Diameter 9.52 mm | Weight 140 g - generaltechuae

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-783B-10

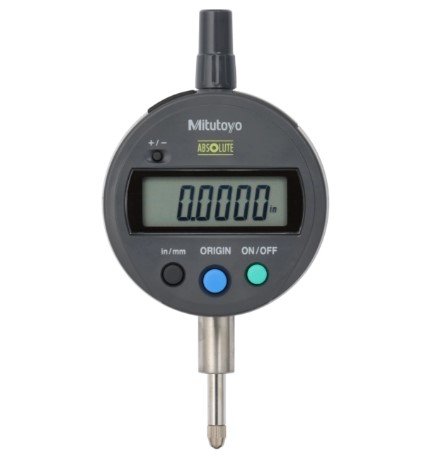

The Mitutoyo 543-783B-10 Digital Indicator ID-S Series 543 is designed to meet ASME/ANSI standards, offering precise measurements with a digital step of 0.0005 inch and hysteresis of 0.001 inch. Its 0.5-inch measuring range is perfect for detailed and accurate work. The indicator features a 9.52 mm diameter, allowing it to fit into small spaces for versatile usage. Weighing only 140 g, it offers excellent portability and ease of use. The digital display provides quick, clear readings for increased efficiency. Built for reliability, it delivers consistent performance in industrial and precision applications.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 9 mm
Hysteresis	0.001 Inch or 0.02 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.001 Inch or 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S1012EXB2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0005 inch or 0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	140 g

ASME/ANSI Compliance: Designed to meet ASME/ANSI standards for professional-grade accuracy and reliability.
High Precision: Digital step of 0.0005 inch and hysteresis of 0.001 inch for precise measurements.
Measuring Range: 0.5-inch range suitable for fine, detailed measurements in various applications.
Compact Size: 9.52 mm diameter, ideal for working in tight or limited spaces.
Lightweight: Weighs just 140 g, providing easy handling and portability.
Clear Digital Display: Provides quick, easy-to-read measurement results for increased efficiency and accuracy.

DOWNLOAD CATALOG
