Part Number : 543-717B

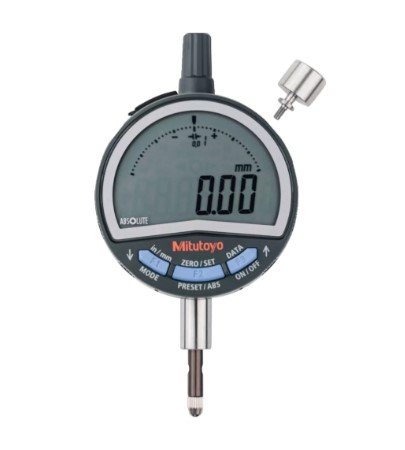

The Mitutoyo 543-717B Digital Indicator ID-C from Series 543 is a precision tool built to meet ASME/ANSI standards, ensuring reliable performance. It features a digital step of 0.0005 inch, providing accurate measurements for a variety of inspection tasks. With a 0.5-inch measuring range, it is ideal for small-scale applications. The indicator maintains repeatable results with a hysteresis of 0.001 inch. Its 9.52 mm stem diameter allows for easy mounting in standard fixtures. Weighing just 155 grams, it offers a lightweight and compact design for convenient handling.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.001 Inch or 0.02 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.001 Inch or 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.8 N
Model Number	ID-C1012CENXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0005 Inch or 0.01 mm
Scale	Approx. 2700 hours (continuous use)
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	155 g

Accurate Measurements: Digital step of 0.0005 inch for precise and reliable readings.
ASME/ANSI Compliant: Designed to meet industry standards for high performance.
Stable Repeatability: Hysteresis of 0.001 inch ensures consistent results.
Compact Range: 0.5-inch measuring range ideal for smaller-scale inspections.
Slim Stem Design: 9.52 mm diameter fits easily into standard fixtures and setups.
Lightweight Build: Weighs only 155 g, making it portable and easy to handle.
