Part Number : 543-707B

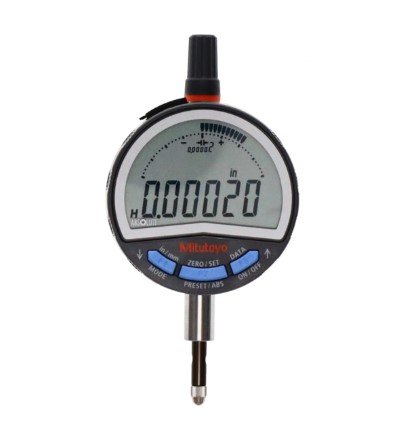

The Mitutoyo 543-707B Digital Indicator ID-C from Series 543 is a high-precision tool designed to meet ASME/ANSI standards for superior accuracy. It features an ultra-fine digital step of 0.00002 inch, ideal for detailed measurement tasks. With a 0.5-inch measuring range, it is well-suited for small-scale inspections. The indicator ensures consistent repeatability with a low hysteresis of 0.00008 inch. Its 9.52 mm stem diameter allows compatibility with various fixtures and setups. Weighing just 160 grams, it is lightweight and easy to handle in any professional environment.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.00002 in/0.00005 in/0.0001 in/0.0005 in Or 0.0005 mm/0.001 mm/0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.00008 in or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.00012 in Or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	0.4 - 0.7 N
Model Number	ID-C0512CENXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.00008 in or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	160 g

Ultra-High Precision: Digital step of 0.00002 inch for exceptional measurement accuracy.
ASME/ANSI Compliant: Meets industry standards for quality and reliable performance.
Stable and Consistent: Hysteresis of 0.00008 inch ensures repeatability in measurements.
Compact Range: 0.5-inch measuring range for detailed and precise inspections.
Slim Stem Diameter: 9.52 mm stem fits easily into standard setups and fixtures.
Lightweight Design: Weighs only 160 g, providing portability and ease of use.
