Part Number : 543-702B

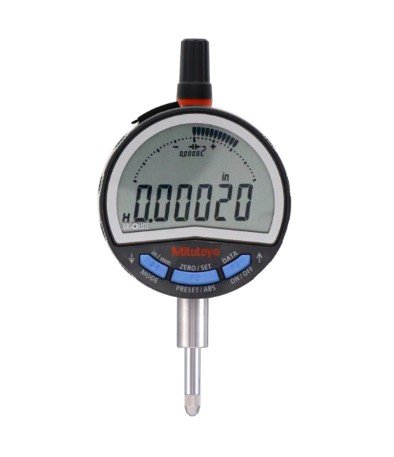

The Mitutoyo 543-702B Digital Indicator ID-C from Series 543 is a high-precision measurement tool designed to meet ASME/ANSI standards. It offers a digital step of 0.00002 inch, providing exceptional accuracy for detailed inspection tasks. With a 0.5-inch measuring range, it's ideal for smaller precision measurements. The indicator features a low hysteresis of 0.00008 inch, ensuring reliable and repeatable results. Its 9.52 mm stem diameter ensures compatibility with a variety of setups, while the 165 g weight makes it lightweight and easy to handle. The clear digital display allows for fast and accurate readings in professional environments.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.00002 in/0.00005 in/0.0001 in/0.0005 in Or 0.0005 mm/0.001 mm/0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.00008 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.00012 inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C0512ENXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.00008 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	165 g

Ultra-High Precision: Digital step of 0.00002 inch for highly accurate measurements.
ASME/ANSI Compliant: Meets industry standards for quality and performance.
Reliable Repeatability: Hysteresis of 0.00008 inch ensures stable and consistent results.
Compact Measuring Range: 0.5-inch range for precise inspection tasks.
Slim Stem Design: 9.52 mm diameter fits a variety of fixtures and setups.
Lightweight Build: Weighs just 165 g, offering portability and ease of use.
