Part Number : 543-702

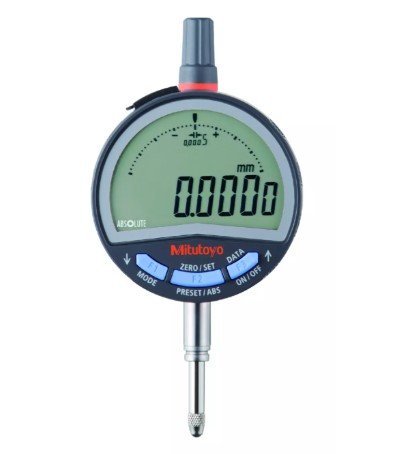

The Mitutoyo 543-702 Digital Indicator ID-C from Series 543 is a precision tool built to meet ASME/ANSI standards for high-quality measurements. It features a digital step of 0.00002 inch, delivering exceptional accuracy for detailed inspection tasks. With a 0.5-inch measuring range, it is perfect for small-scale precision measurements. The unit offers a low hysteresis of 0.00008 inch, ensuring reliable repeatability. Its 9.52 mm stem diameter allows easy integration into various setups. Weighing 195 grams, it provides a robust build while remaining easy to handle in professional environments.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.00002 in/0.00005 in/0.0001 in/0.0005 in Or 0.0005 mm/0.001 mm/0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.00008 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.00012 In or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C0512ENX
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 In or 12.7 mm
Repeatability	0.00008 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	195 g

Ultra-High Precision: Digital step of 0.00002 inch for exceptional accuracy in measurements.
ASME/ANSI Compliant: Built to meet industry standards for quality and performance.
Stable Repeatability: Hysteresis of 0.00008 inch ensures reliable and consistent results.
Compact Range: 0.5-inch measuring range ideal for fine, detailed inspection tasks.
Slim Stem Diameter: 9.52 mm stem fits easily into a variety of setups and fixtures.
Durable & Lightweight: Weighs 195 g, offering robust construction with easy handling.
