Part Number : 543-342B-10

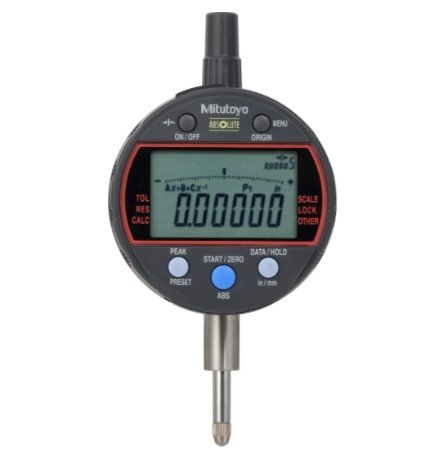

The Mitutoyo 543-342B-10 Digital Indicator from Series 543 is a high-precision, calculation-type ID-C model designed to meet ASME/ANSI standards. With a measuring range of 0.5 inch, it is ideal for detailed, small-scale inspection tasks. The indicator delivers outstanding accuracy and repeatability, with both hysteresis and accuracy rated at 0.0001 inch. It is perfect for applications requiring precise data processing and consistent results. Built for durability and efficiency, this indicator is well-suited for professional use in industrial and laboratory environments.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Battery Life	Standard mode: approx. 1 year, Fast mode: approx. 4.5 month
Calculation function	Yes
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Display	LCD, character height 8 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.0001 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C112REXB2
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	170 g

Calculation Type ID-C: Enables advanced measurement and data processing functions.
ASME/ANSI Compliant: Meets strict industry standards for quality and precision.
Exceptional Accuracy: 0.0001 inch hysteresis and accuracy for ultra-reliable results.
Compact Measuring Range: 0.5-inch range suitable for precision inspection tasks.
Reliable Repeatability: Ensures consistent measurements across repeated use.
Ideal for Professional Use: Designed for high-accuracy environments and demanding applications.
