Part Number : 543-302

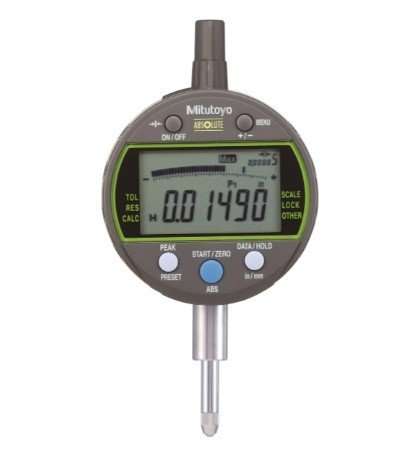

The Mitutoyo 543-302 Digital Indicator Peak Hold from Series 543 is engineered to ANSI/AGD standards, delivering precise and consistent measurements. It features a peak hold function that captures and retains the highest value during dynamic testing. With a digital step of 0.00005 inch, it ensures ultra-fine accuracy for detailed inspection tasks. The 0.5-inch measuring range is ideal for precision work, and a hysteresis of 0.0001 inch guarantees stable and repeatable results. Its 9.52 mm stem diameter offers compatibility with a wide range of fixtures. Weighing 170 grams, it combines lightweight handling with dependable durability.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Battery Life	Standard mode: approx. 1 year, Fast mode: approx. 4.5 month
Calculation function	Yes
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.00005 in/0.0001 in/0.0005 in or 0.001 mm/0.01 mm
Display	LCD, character height 8 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	+/-0.0001 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	170 g

Peak Hold Function: Retains peak values during fluctuating or dynamic measurements.
Ultra-Fine Resolution: Digital step of 0.00005 inch for high-precision inspections.
Excellent Repeatability: Hysteresis of 0.0001 inch ensures consistent, accurate readings.
Compact Measuring Range: 0.5-inch range suitable for fine, detailed applications.
ANSI/AGD Compliant: Built to meet rigorous industry standards.
Robust & Lightweight: Weighs 170 g and features a 9.52 mm stem for easy setup integration.

DOWNLOAD CATALOG
