Part Number : 543-301B-10

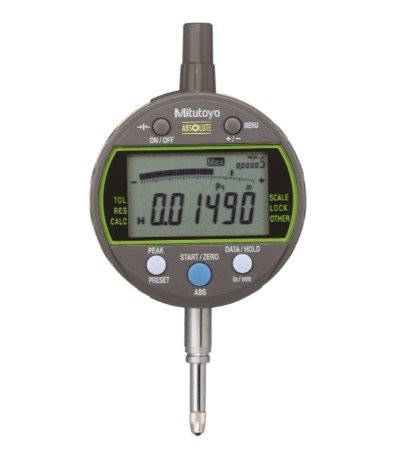

The Mitutoyo 543-301B-10 Digital Indicator from Series 543 is a high-precision measuring tool featuring a peak hold function, ideal for capturing maximum values during dynamic measurements. It offers an ultra-fine digital step of 0.00005 inch, delivering outstanding accuracy for detailed inspection work. With a 0.5-inch measuring range, it is well-suited for small-scale precision applications. The indicator provides reliable repeatability with a low hysteresis of 0.0001 inch. Its 8 mm stem diameter ensures compatibility with standard fixtures. Weighing 170 grams, it offers a lightweight, durable design perfect for both industrial and laboratory environments.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Battery Life	Standard mode: approx. 1 year, Fast mode: approx. 4.5 month
Calculation function	Yes
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.00005 in/0.0001 in/0.0005 in /0.001 mm/0.01 mm
Display	LCD, character height 8 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.0001 in/0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.0001 in/0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C112AMXB2
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 in/0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	170 g

Peak Hold Capability: Captures peak values for dynamic or fluctuating measurements.
Ultra-Precise Readings: Digital step of 0.00005 inch for high-resolution measurements.
Repeatable Accuracy: Hysteresis of 0.0001 inch ensures consistent performance.
Compact Measuring Range: 0.5-inch range suited for fine, detailed inspections.
Slim Profile: 8 mm stem diameter integrates easily into standard setups.
Lightweight Build: Weighs 170 g, offering easy handling with robust construction.

DOWNLOAD CATALOG
