Part Number : 543-300B-10

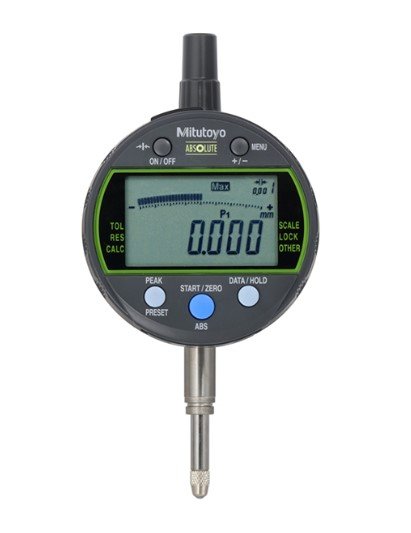

The Mitutoyo 543-300B-10 Digital Indicator from Series 543 is equipped with a peak hold function for capturing and displaying peak values during measurements. It features a digital step of 0.001 mm, ensuring high precision for detailed inspections. With a 12.7 mm measuring range, it is suitable for a variety of general measurement tasks. The indicator has a hysteresis of 0.002 mm, providing consistent and repeatable results. Its 8 mm stem diameter allows easy integration into different setups. Weighing just 170 grams, it is lightweight and easy to handle for professional use.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Battery Life	Standard mode: approx. 1 year, Fast mode: approx. 4.5 month
Calculation function	Yes
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.001 mm/0.01 mm
Display	LCD, character height 8 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C112AXB2
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	170 g

Peak Hold Function: Captures and displays peak values for dynamic measurements.
High Precision: Digital step of 0.001 mm ensures accurate and reliable readings.
Stable Repeatability: Hysteresis of 0.002 mm ensures consistent measurement results.
Versatile Range: 12.7 mm measuring range suitable for a wide range of tasks.
Slim Stem Diameter: 8 mm stem fits easily into various fixtures and setups.
Lightweight Build: Weighs only 170 g, offering portability and ease of use.
