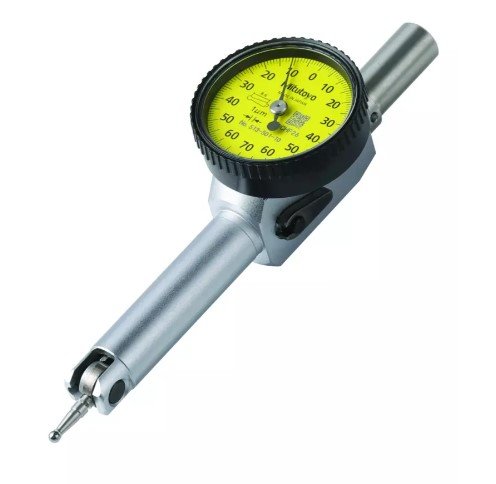

Mitutoyo 513-503-10T | Pocket Dial Test Indicator | 0.002 mm graduation, 0.2 mm range, Full Set
Part Number : 513-503-10T
The Mitutoyo 513-503-10T is a pocket dial test indicator in Series 513 with 0.002 mm graduation and a 0.2 mm range, supplied as the Full Set. The 513-503-10T mounts on 4 mm and 8 mm stems. Readings on the 513-503-10T are in metric units.
- Dial reading 0-100-0, repeatability 1 µm (513-503-10T)
- Measuring force ≤ 0.4 N on the 513-503-10T
- 513-503-10T: Full Set includes a swivel clamp
- Jewelled bearings and O-ring sealed bezel against dust and oil, 513-503-10T
- Contact point thread M 1.7 x 0.35; tip number 103010 (513-503-10T)
- Stylus 2 mm on the 513-503-10T
