Part Number : 513-426-10A

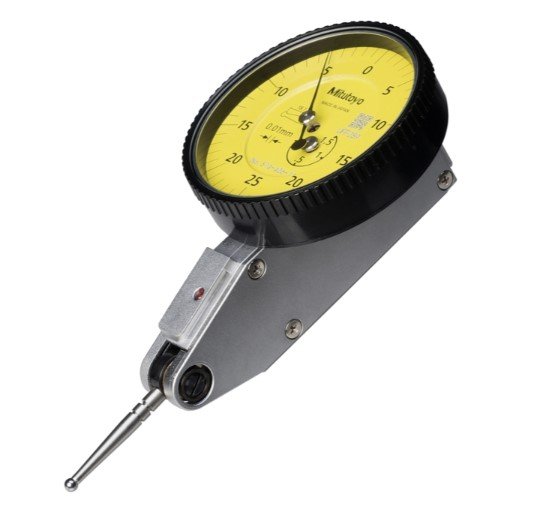

The Mitutoyo 513-426-10A is a horizontal dial test indicator from Series 513, engineered for extended-range precision tasks. It includes both 4 mm and 8 mm stems for flexible and stable mounting options. With a 1.5 mm measuring range and fine 0.01 mm graduation, it excels in accurate, high-resolution inspections. As a Plus Set, it comes complete with added accessories to enhance usability and convenience. Perfect for professionals needing wider range measurements in alignment, tooling, and QC applications.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	4 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring range	16 µm
Range	1.5 mm
Repeatability	3 µm
Series	513
Set Type	Plus Set
Size	Stem Size : 4/8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.01 mm, offering high-resolution measurements.
Range: 1.5 mm, suitable for precise displacement measurements.
Dial Reading: 0–25–0, facilitating easy interpretation of measurements.
Measuring Force: 0.4 N or less, ensuring minimal impact on the measured surface.
Contact Point: Carbide, providing durability and resistance to wear.
Included Accessories: Comes with 8 mm and 4 mm stems, offering flexibility for various setups.

DOWNLOAD CATALOG
