Mitutoyo 513-424-10A | Dial Test Indicator | Horizontal Type | Series 513 | Plus Set | Stem 4/8 mm | Graduation 0.01 mm | Range 0.5 mm
The Mitutoyo 513-424-10A is a Series 513 horizontal dial test indicator with 0.01 mm graduation and a 0.5 mm measuring range, supplied as a Plus Set. Genuine Mitutoyo from General Tech, authorised distributor in Saudi Arabia. Request a quote.
Part No.: 513-424-10A
Contact: +966 531 321586

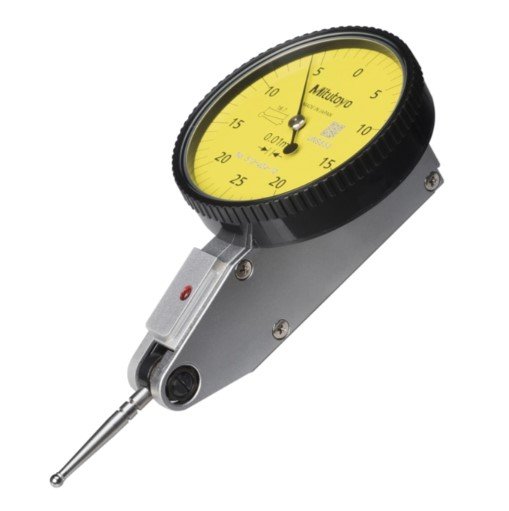

Plunger-type indicators cannot reach inside bores, narrow slots or recessed faces, and they are awkward for machine alignment. The Mitutoyo 513-424-10A is a lever-type dial test indicator with 0.01 mm graduation and a 0.5 mm measuring range.
The no-clutch design reverses measuring direction automatically, jeweled bearings provide high sensitivity and quick response, and the contact point is carbide-tipped. It is genuine Mitutoyo, supplied through an authorised distributor.
Typical uses include centring work and aligning fixtures on machine tools, runout and flatness checks, and measuring in bores, slots and recessed areas. Dial test indicators are commonly used for centring work in a lathe or mill, aligning vices and fixtures, checking runout, and measuring narrow or recessed areas and inside and outside diameters that dial indicators cannot easily access. The Plus Set adds extra accessories to the basic indicator, stem and clamp ring.
For the best accuracy, keep the stylus as close to parallel with the measured surface as possible. When the stylus is at an angle, the reading can be larger than the true movement due to cosine error, so keeping the stylus aligned helps minimise measurement error.
Before ordering, confirm the graduation and range you need, the stem diameter for your holder (4 / 8 mm), and which set suits your work. Our team can help you compare the Basic, Plus and Full sets. Our team can also arrange calibration.
Comparing options? See the Mitutoyo 513-404-10A (0.8 mm, Plus Set) before you order.
Key Benefits
-
0.01 mm graduation and 0.5 mm measuring range
-
No-clutch automatic direction reversal
-
Jeweled bearings for high sensitivity
-
Carbide-tipped contact point
-
Plus Set configuration
-
Genuine Mitutoyo from an authorised distributor in Saudi Arabia
Contact: +966 531 321586
Who This Product Is Best For
-
Centring work and aligning fixtures on machine tools
-
Runout and flatness checks
-
Measuring in bores, slots and recessed areas
How to Specify & Install It
-
Mount the indicator on a stand or holder using the appropriate stem.
-
Bring the stylus onto the surface with a small preload.
-
Set the dial to zero by rotating the bezel.
-
Traverse the part and read the deviation.
Frequently Asked Questions
What is a dial test indicator used for?
It is used for alignment, centring, runout checks and measuring narrow or recessed areas that plunger indicators cannot easily reach.
What does the Plus Set include?
The Plus Set adds extra accessories to the basic indicator, stem and clamp ring.
What is cosine error?
If the stylus is not parallel to the measured surface, the indicator can over-read the true movement. Keeping the stylus properly aligned helps minimise this error.
Should I choose the 513-424-10A or the 513-404-10A?
The 513-404-10A offers a 0.8 mm measuring range and Plus Set configuration, while the 513-424-10A offers a 0.5 mm range. Match the measuring range, graduation and accessories to your application. Our team can help you compare the requirements.
How should I care for the instrument?
Wipe the contact surfaces clean after use, store the indicator in its case away from heat, humidity and coolant, and avoid knocks to the contact point or mechanism. Regular calibration helps maintain measurement accuracy.
Can the instrument be calibrated?
General Tech Saudi provides calibration services for dimensional instruments. Ask the team about calibration when you order.
Can you supply other Mitutoyo instruments in the same order?
Yes. General Tech supplies a wide range of Mitutoyo micrometers, indicators, gauges and accessories. Share your requirements and the team can quote them together.
Is genuine Mitutoyo available in Saudi Arabia?
Yes. General Tech is an authorised Mitutoyo distributor in Saudi Arabia. Contact the team for current pricing, availability and lead time.
