Mitutoyo 513-415-10A | Dial Test Indicator | Horizontal Type | Series 513 | Plus Set | Stem 4/8 mm | Graduation 0.01 mm | Range 1 mm
The Mitutoyo 513-415-10A is a Series 513 horizontal dial test indicator with 0.01 mm graduation and a 1 mm range, supplied as a Plus Set. Genuine Mitutoyo from General Tech, authorised distributor in Saudi Arabia. Request a quote - call +966 531 321586.
Part No. 513-415-10A

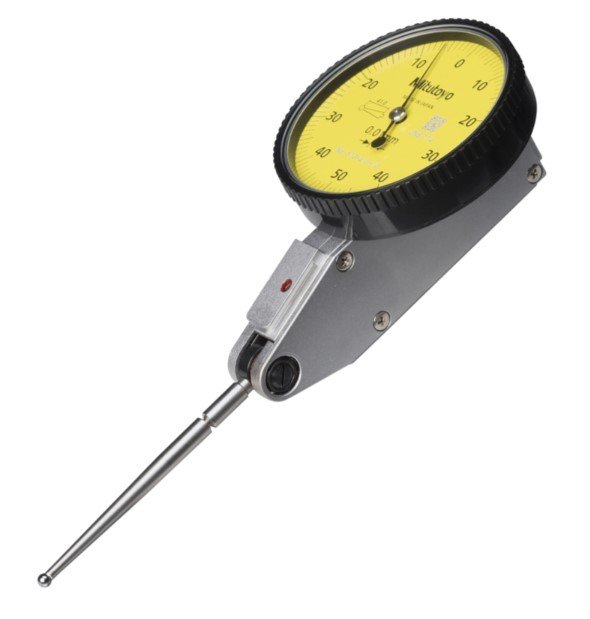

Plunger-type indicators cannot reach inside bores, narrow slots or recessed faces, and they are awkward for machine alignment. The Mitutoyo 513-415-10A is a lever-type dial test indicator with 0.01 mm graduation and a 1 mm range.
The no-clutch design reverses measuring direction automatically, while jeweled bearings provide high sensitivity and quick response. The indicator features a carbide-tipped contact point. It is genuine Mitutoyo, supplied through an authorised distributor.
Typical uses include centring work and aligning fixtures on machine tools, runout and flatness checks, and measuring in bores, slots and recessed areas. Dial test indicators are commonly used for centring work in a lathe or mill, aligning vices and fixtures, checking runout, and measuring narrow or recessed areas and inside and outside diameters that dial indicators cannot access.
The Plus Set adds extra accessories to the basic indicator, stem and clamp ring. For the best accuracy, keep the stylus as close to parallel with the measured surface as possible. When the stylus is at an angle, the reading is larger than the true movement due to cosine error, so a correction factor may be needed.
Before ordering, confirm the graduation and range you need, the stem diameter for your holder (4 / 8 mm), and which set suits your work. Our team can help you compare the Basic, Plus and Full sets. Our team can also arrange calibration.
Comparing options? See the Mitutoyo 513-404-10A (0.8 mm, Plus Set) before you order.
Key Benefits
-
0.01 mm graduation, 1 mm range
-
No-clutch automatic direction reversal
-
Jeweled bearings for high sensitivity
-
Carbide-tipped contact point
-
Plus Set configuration
Genuine Mitutoyo from an authorised distributor in Saudi Arabia
Call +966 531 321586 for pricing and stock availability
Who This Product Is Best For
-
Centring work and aligning fixtures on machine tools
-
Runout and flatness checks
-
Measuring in bores, slots and recessed areas
How to Specify & Install It
-
Mount the indicator on a stand or holder using the stem.
-
Bring the stylus onto the surface with a small preload.
-
Set the dial to zero by rotating the bezel.
-
Traverse the part and read the deviation.
Frequently Asked Questions
What is a dial test indicator used for?
For alignment, centring, runout checks and measuring narrow or recessed areas that plunger indicators cannot reach.
What does the Plus Set include?
The Plus Set adds extra accessories to the basic indicator, stem and clamp ring.
What is cosine error?
If the stylus is not parallel to the surface, the indicator over-reads the true movement. Keeping the stylus parallel minimises this error.
Should I choose the 513-415-10A or the 513-404-10A?
The 513-404-10A offers 0.8 mm with a Plus Set. Match the range, graduation and accessories to your work; our team can help you decide.
How should I care for the instrument?
Wipe contact surfaces clean after use, store it in its case away from heat, humidity and coolant, and avoid knocks to the contact point or spindle. Regular calibration keeps readings trustworthy.
Can the instrument be calibrated?
General Tech Saudi provides calibration services for dimensional instruments. Ask our team about calibration when you order.
Can you supply other Mitutoyo instruments in the same order?
Yes. Our store carries a wide range of Mitutoyo micrometers, indicators, gauges and accessories. Tell us what you need and we will quote them together.
Is genuine Mitutoyo available in Saudi Arabia?
Yes. General Tech is an authorised Mitutoyo distributor. Call +966 531 321586 for current pricing, availability and lead time.
