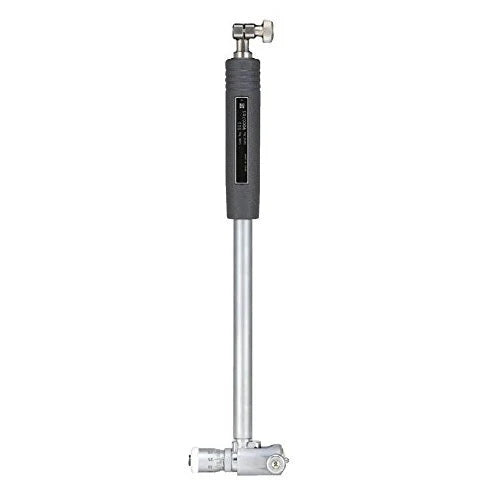

Mitutoyo 511-803 | Micrometer Head Bore Gauge | 60-100 mm, 2 µm
Part Number : 511-803
The Mitutoyo 511-803 is a bore gauge driven by a micrometer head rather than a dial indicator, covering bores from 60 to 100 mm with accuracy to 2 µm. Interchangeable alloy-steel anvils with carbide-tipped balls set the measuring range.
- Bore range 60-100 mm
- Accuracy 2 µm
- Carbide-tipped ball on each anvil for longer service
- Micrometer head with 10 mm travel; no indicator included
- Sub anvils of 10 mm and 20 mm supplied
- 8 mm stem diameter
For pricing, please contact our experts.
