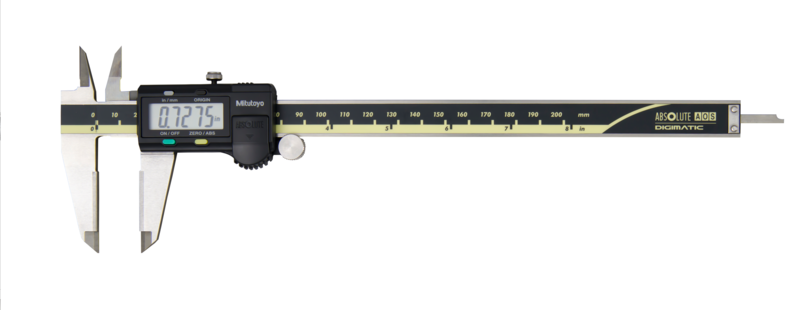

Mitutoyo 500-177-30 | ABSOLUTE AOS Digital Caliper, Carbide OD Jaws | 0-200 mm / 0-8 in, with output
Measuring 0-200 mm / 0-8 in with carbide-tipped outside jaws, the 500-177-30 from Mitutoyo uses an AOS electromagnetic induction encoder, so water or oil on the scale does not upset the reading. Its ABSOLUTE scale holds the origin, so the 0-200 mm / 0-8 in reading is valid as soon as it is switched on.
- 0-200 mm / 0-8 in capacity, 0.01 mm / 0.0005 in resolution
- ±0.02 mm (±0.001 in) accuracy; with data output
- OD measuring jaws tipped in carbide
- Induction-type encoder resists contamination on the scale; no re-zeroing at switch-on; no response-speed limit
- LCD character height 9 mm; stable, smooth-running slider
- Specifications
- Features
- Downloads
| Part Number | 500-177-30 |
| Brand | Mitutoyo |
| Range | 0-200 mm / 0-8 in |
| Data Output | Yes |
| Resolution | 0.01 mm / 0.0005 in |
| Accuracy | ±0.02 mm (±0.001 in) |
| Units | Inch/Metric |
| Jaws | Carbide-tipped OD |
| Encoder | AOS electromagnetic induction (ABS) |
| Character Height | 9 mm (0.354 in) |
- Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
- The slider provides smooth, stable and comfortable operation.
- Character height: 9 mm (alleviation of fatigue with the high-contrast LCD)
- The ABS (ABSOLUTE) scale requires no origin setting after power-on and also has no limit to response speed.
- Extraordinary battery life
