Mitutoyo 500-172-20 | Absolute Digimatic Caliper | Resolution 0.01 mm | Range 200 mm or 8 inch | Accuracy ±0.02 mm

Name: Mitutoyo 500-172-20 | Absolute Digimatic Caliper | Resolution 0.01 mm | Range 200 mm or 8 inch | Accuracy ±0.02 mm
Brand: Mitutoyo
SKU: 500-172-20
Availability: OutOfStock

Part Number : 500-172-20

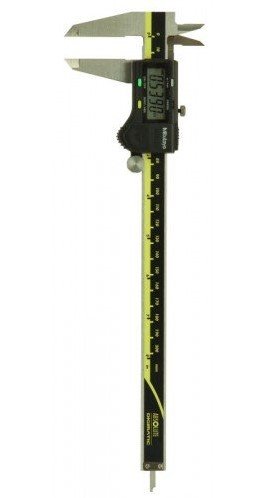

The next generation of electronic calipers is Mitutoyo's absolute Digimatic Caliper. Once set, it maintains a record of its starting point. The big LCD screen shows the exact slider position ready to begin measuring whenever it is turned on. With the absolute encoder technology, there is no need for repeated zero settings or attention to overspeed faults.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Accuracy	+/-0.001 in
Battery	SR44
Depth	Inside Jaw: 24.5 mm
Depth	Outside Jaw: 50 mm
Display	Digital LCD
Length	290 mm
Material	Stainless Steel
Measurement range	0 to 200 mm, 0 to 8 in
Resolution	0.0005 in, 0.01 mm
Scale	Width: 16 mm
Type	Absolute Digimatic Caliper
Weight	190g

The LCD readout is large and crisp.
For incremental comparative measurements, the ZERO/ABS key enables the display to be Zero-Set at any slider position along the scale. Additionally, this option will enable the display of the actual position from the origin point (often the jaws-closed point) and return to the absolute (ABS) coordinate.
The 959143 Data Hold Unit is not required.
There are also calipers with carbide-tipped jaws.
