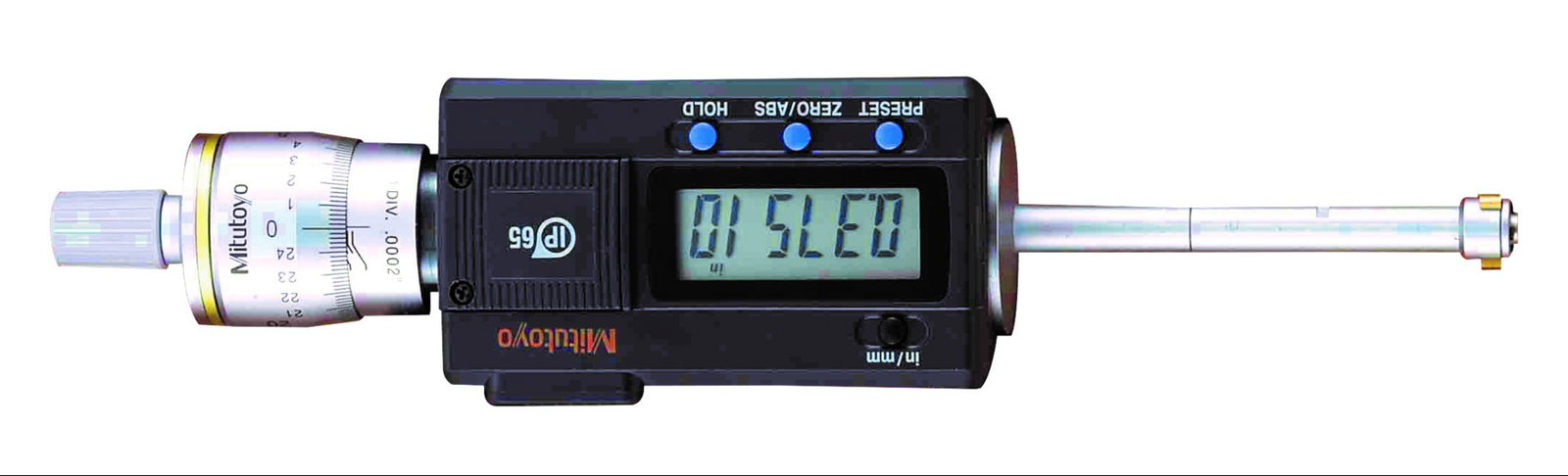

Mitutoyo 468-264 Digimatic Holtest Three-Point Bore Micrometer, Range .5 - .65" (12.7 - 16.51 mm)
The Mitutoyo 468-264 is a Series 468 Digimatic Holtest three-point internal micrometer with a .5-.65" (12.7-16.51 mm) measuring range and 0.00005" / 0.001 mm resolution. Genuine Mitutoyo from General Tech, authorised distributor in Saudi Arabia. Request a quote - call +966 531 321586.
Part No. 468-264 | Call: +966 531 321586
Two-point bore gauges depend on the operator finding the true diameter by rocking the gauge, so readings can vary from person to person. The Mitutoyo 468-264 uses three self-centring anvils spaced at 120°, which locate on the bore automatically and measure the true inside diameter across a .5-.65" (12.7-16.51 mm) range.
The contact points are TiN (titanium nitride) coated for durability and impact resistance, and they allow measurement right to the bottom of a blind hole. A ratchet stop applies constant measuring force, while the large LCD provides 0.00005" / 0.001 mm resolution with inch/mm switching. It is genuine Mitutoyo, supplied through an authorised distributor.
Typical uses include machine shops inspecting bores, bushings and cylinders; quality laboratories requiring operator-independent bore readings; and blind-hole measurement in drilled and bored parts. Functions include zero/ABS setting, presetting, data hold and data output, along with low-battery and error alarms. The data output allows readings to be transferred to an SPC or data collection system, while an optional extension rod can be used for measuring deep holes.
For best accuracy, keep the head square to the bore axis, measure at more than one depth to check for taper or ovality, and allow the part and instrument to reach the same temperature before measuring.
Because a three-point instrument must be set against a known diameter, a setting ring is needed for origin setting. Setting rings are optional accessories, so ask our team to quote the matching ring with your order. General Tech can also arrange calibration.
Comparing options? See the Mitutoyo 468-265 (.65-.8" (16.51-20.32 mm)) before you order.
Key Benefits
-
Self-centring three-point contact for true bore diameter
-
TiN-coated contact points for durability
-
Ratchet stop for repeatable measuring force
-
Data output for SPC and data collection
-
.5-.65" (12.7-16.51 mm) measuring range
-
Inch/mm switching with 0.00005" / 0.001 mm resolution
Genuine Mitutoyo from an authorised distributor in Saudi Arabia.
Call +966 531 321586 for pricing and stock availability.
Who This Product Is Best For
-
Machine shops inspecting bores, bushings and cylinders
-
Quality labs needing operator-independent bore readings
-
Users measuring blind holes in drilled and bored parts
How to Specify & Install It
-
Set the origin using a setting ring of known diameter.
-
Insert the measuring head squarely into the bore.
-
Turn the ratchet stop until it clicks and allow the anvils to self-centre.
-
Read the measurement on the display or send the value through the data output.
Frequently Asked Questions
How does a three-point bore micrometer work?
Three anvils spaced at 120° contact the bore simultaneously and self-centre, allowing the instrument to measure the inside diameter.
Do I need a setting ring?
Yes. A setting ring is used for origin setting. Setting rings are optional accessories, so our team can quote a suitable ring with the micrometer.
Should I choose the 468-264 or the 468-265?
The Mitutoyo 468-265 covers .65-.8" (16.51-20.32 mm). Select the model according to the bore diameter you need to measure.
How should I care for the instrument?
Wipe the measuring faces clean after use and store the instrument in its case away from heat, humidity and coolant. Remove the battery if it will be stored for a long period. Regular calibration helps maintain reliable measurements.
Can the instrument be calibrated?
Yes. General Tech Saudi provides calibration services for dimensional instruments. Ask our team about calibration when placing your order.
Can you supply other Mitutoyo instruments in the same order?
Yes. General Tech supplies a wide range of Mitutoyo micrometers, bore gauges, calipers and indicators. Tell us what you need and we can quote them together.
Is genuine Mitutoyo available in Saudi Arabia?
Yes. General Tech is an authorised Mitutoyo distributor. Call +966 531 321586 for current pricing, availability and lead time.
